Encryption and certificate management on AWS

Deploying Applications on AWS

Dunieski Otano

Amazon Web Services Solutions Architect

The missing backup disk

A backup drive goes missing in transit
Encrypted at rest, it is useless to a thief
TLS does the same for data on the wire

A disk protected by a padlock representing encryption at rest versus an unprotected disk

Encryption at rest vs in transit

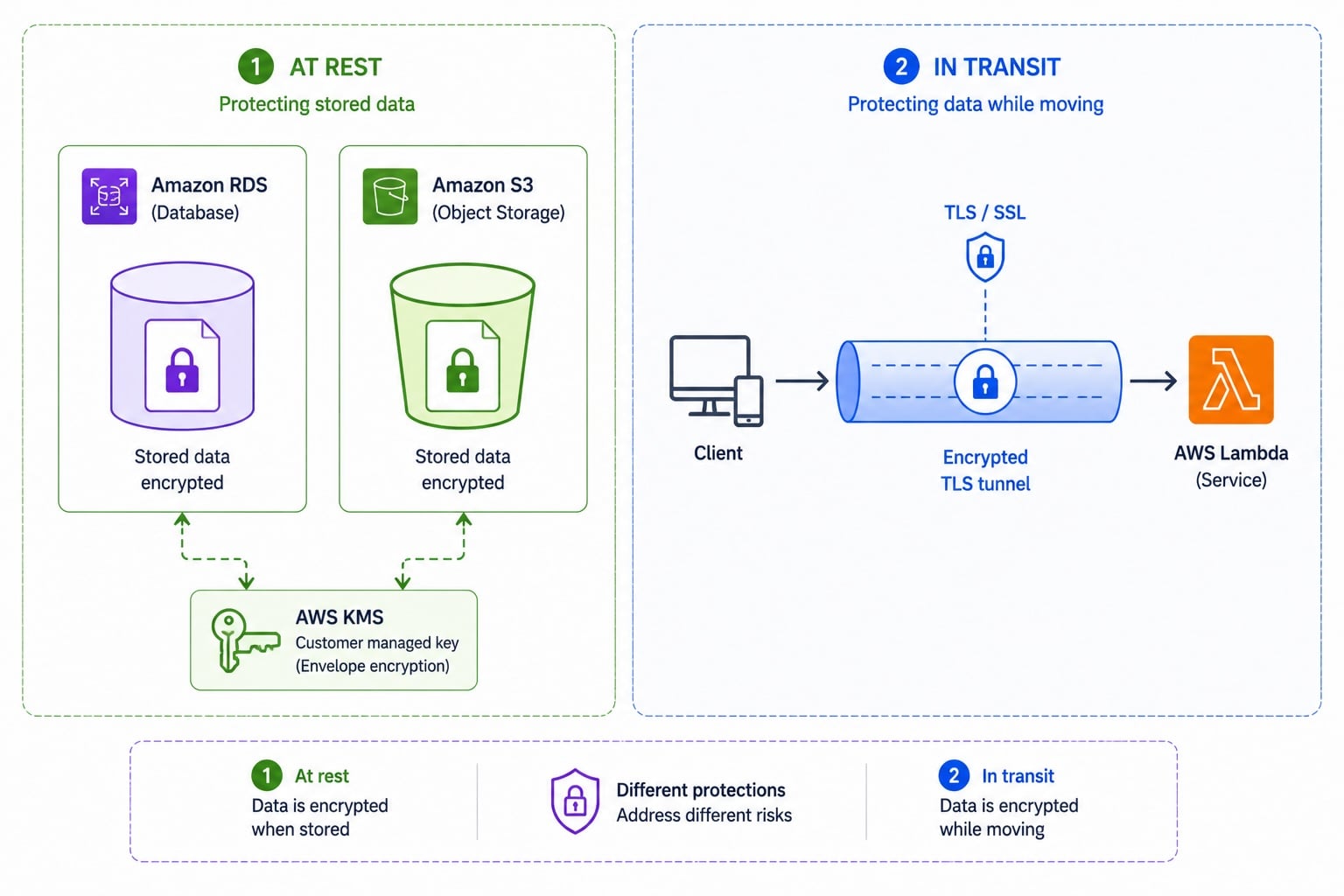

Two-panel comparison: at-rest encryption showing RDS and S3 icons each protected by a KMS key on the left, and in-transit TLS tunnel from client to Lambda on the right

At rest: data stored on disk is encrypted
At rest uses keys, often via KMS
In transit: data moving over the network is encrypted
In transit uses TLS certificates

Client-side vs server-side encryption

Server-side

The service encrypts data after it receives it
Simplest; AWS manages the step, usually with a KMS key

Client-side

You encrypt before the data leaves your code
The service only ever stores ciphertext, never plaintext

Public vs private certificates

ACM: free public TLS certificates for your domains
Used on load balancers, CloudFront, API Gateway
AWS Private CA: issues internal, private certificates
Private CA powers internal services and mTLS

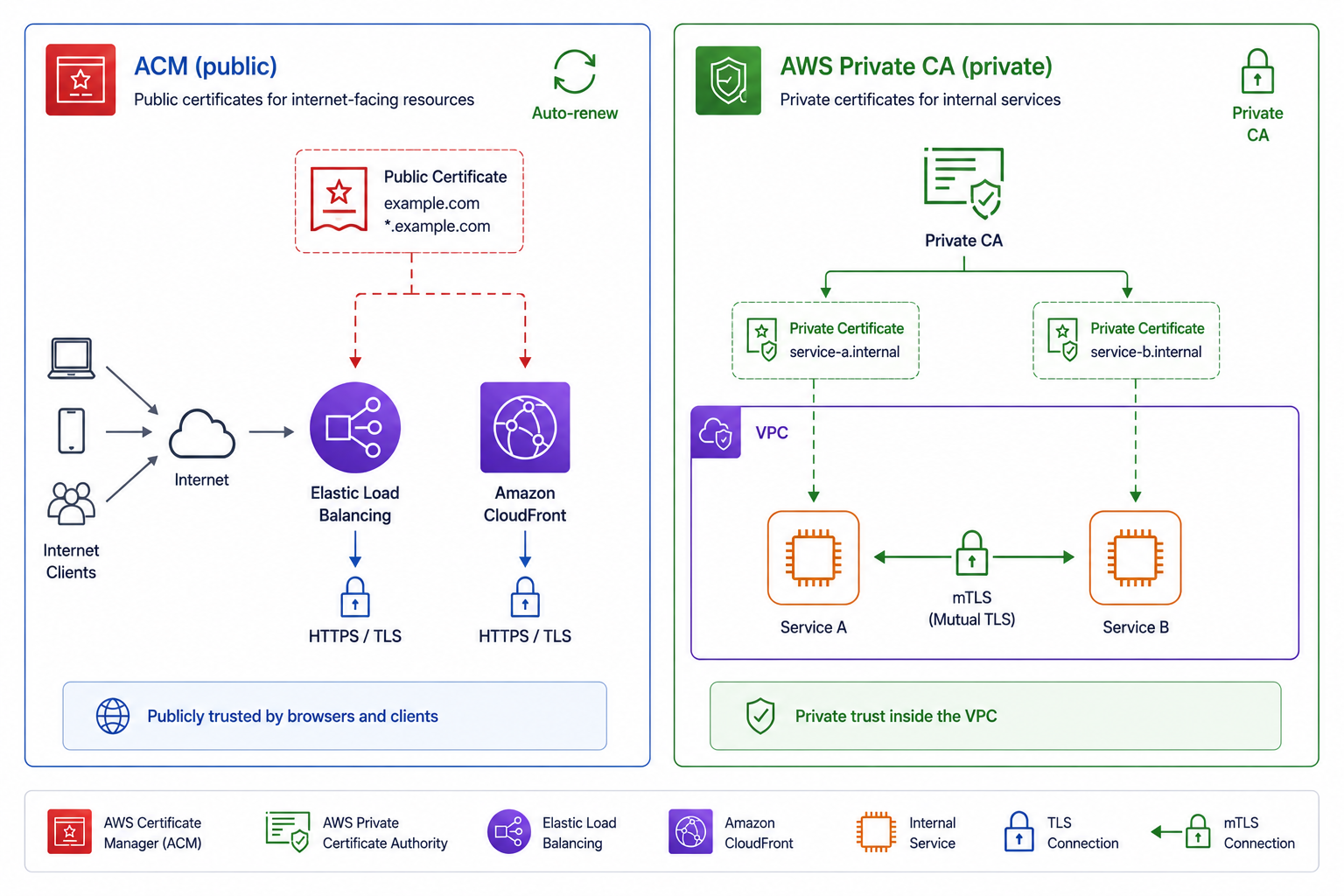

ACM free public certificate on load balancer and CloudFront on the left versus Private CA certificate for internal service-to-service mTLS on the right

KMS keys and rotation

AWS-managed keys: created and rotated by AWS
Customer-managed keys: you control policy and rotation
Automatic rotation: new key material yearly, same key ID
Applications keep using the same key reference

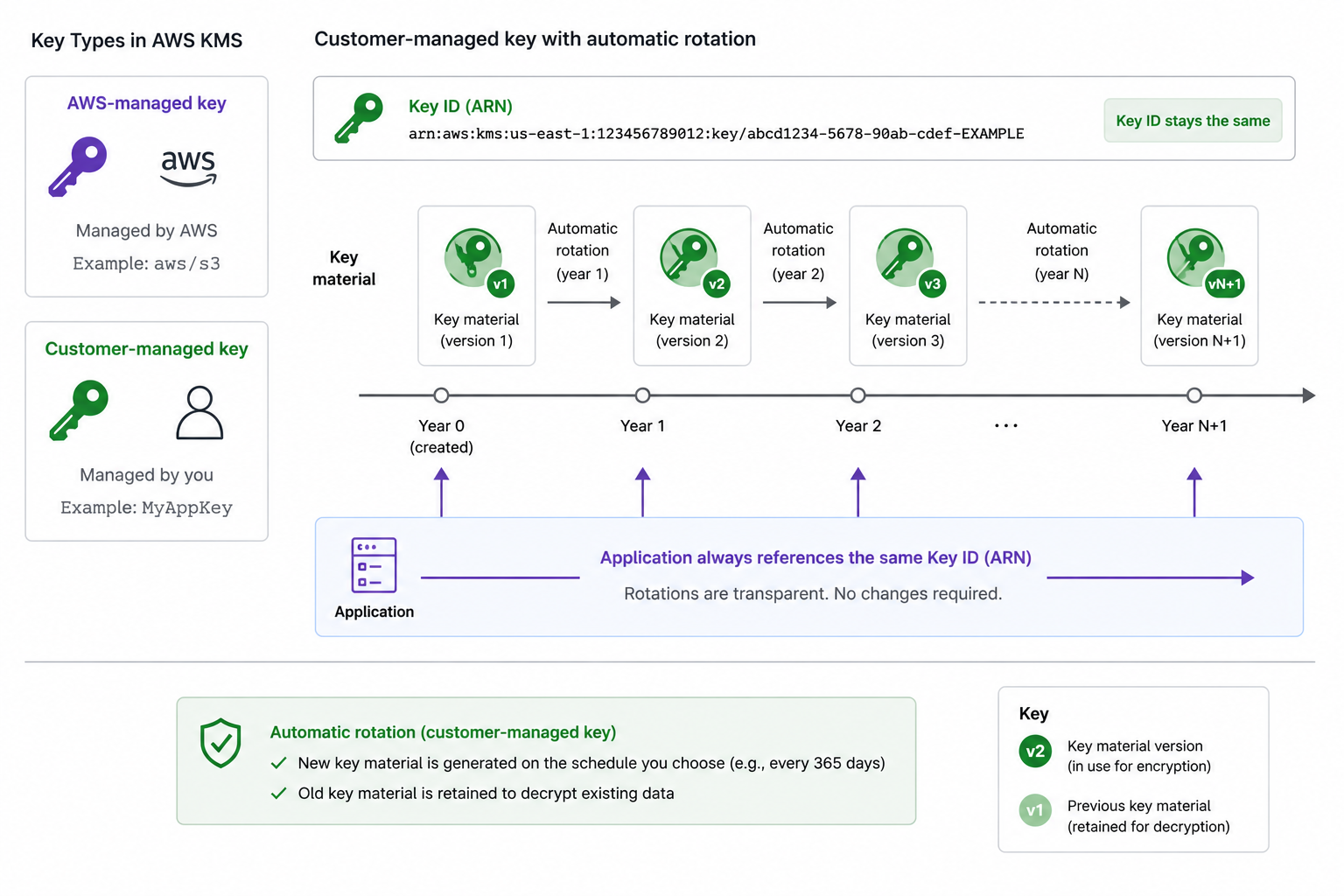

KMS key types side by side: AWS-managed key with automatic rotation on the left, customer-managed key with configurable key policy and annual rotation timeline on the right

Cross-account key access

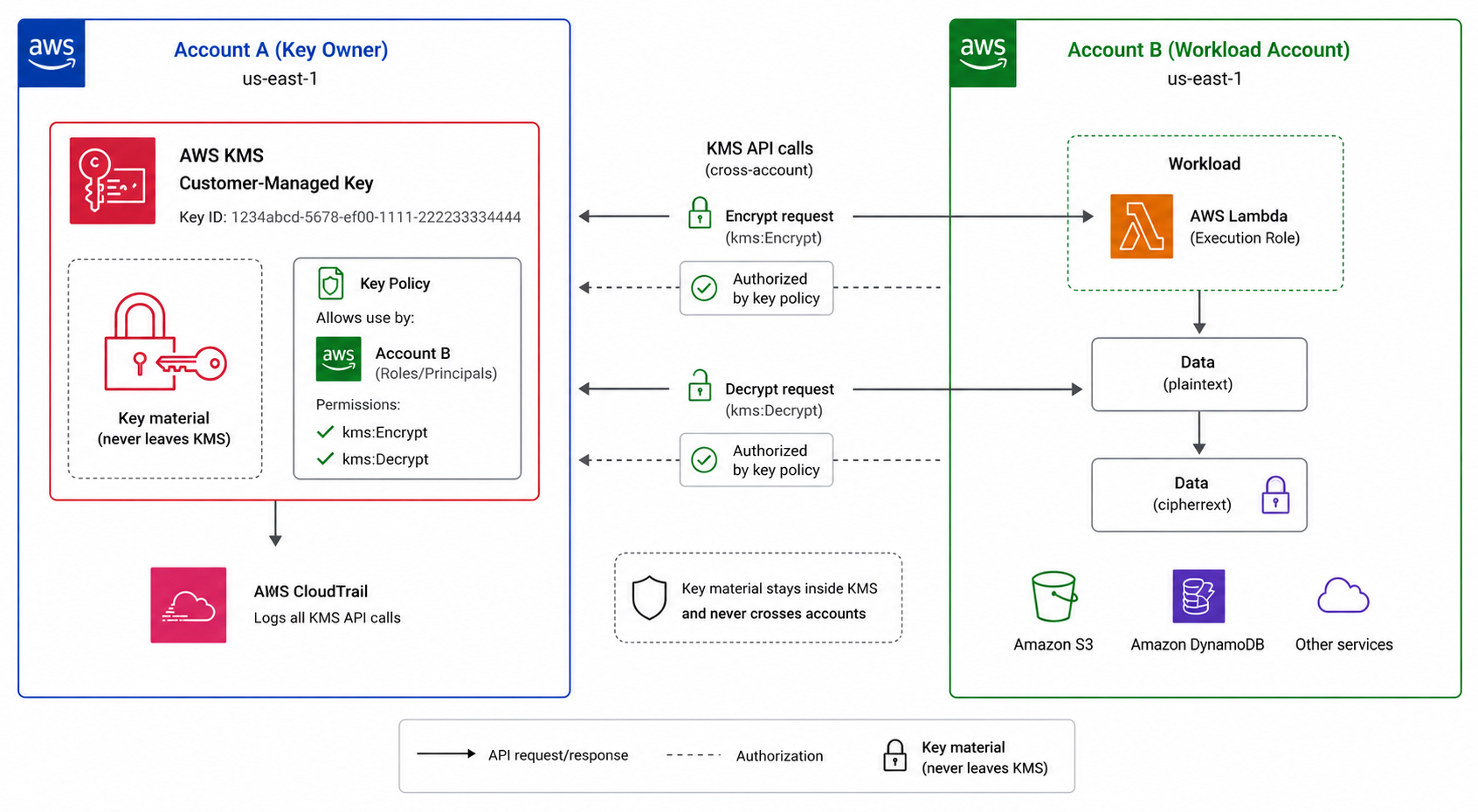

Cross-account KMS key access: key in Account A with a key policy granting Account B permission to use it, Account B encrypts and decrypts without the key material ever leaving KMS

A key policy controls who can use a KMS key
Grant another account use of the key via the policy
The key never leaves KMS
Enables shared encrypted resources across accounts

Putting encryption and certificates together

In transit: ACM certificate ends TLS at the edge
At rest: KMS key encrypts the stored data
Rotate keys automatically; renew certificates automatically
Layered protection from the wire to the disk

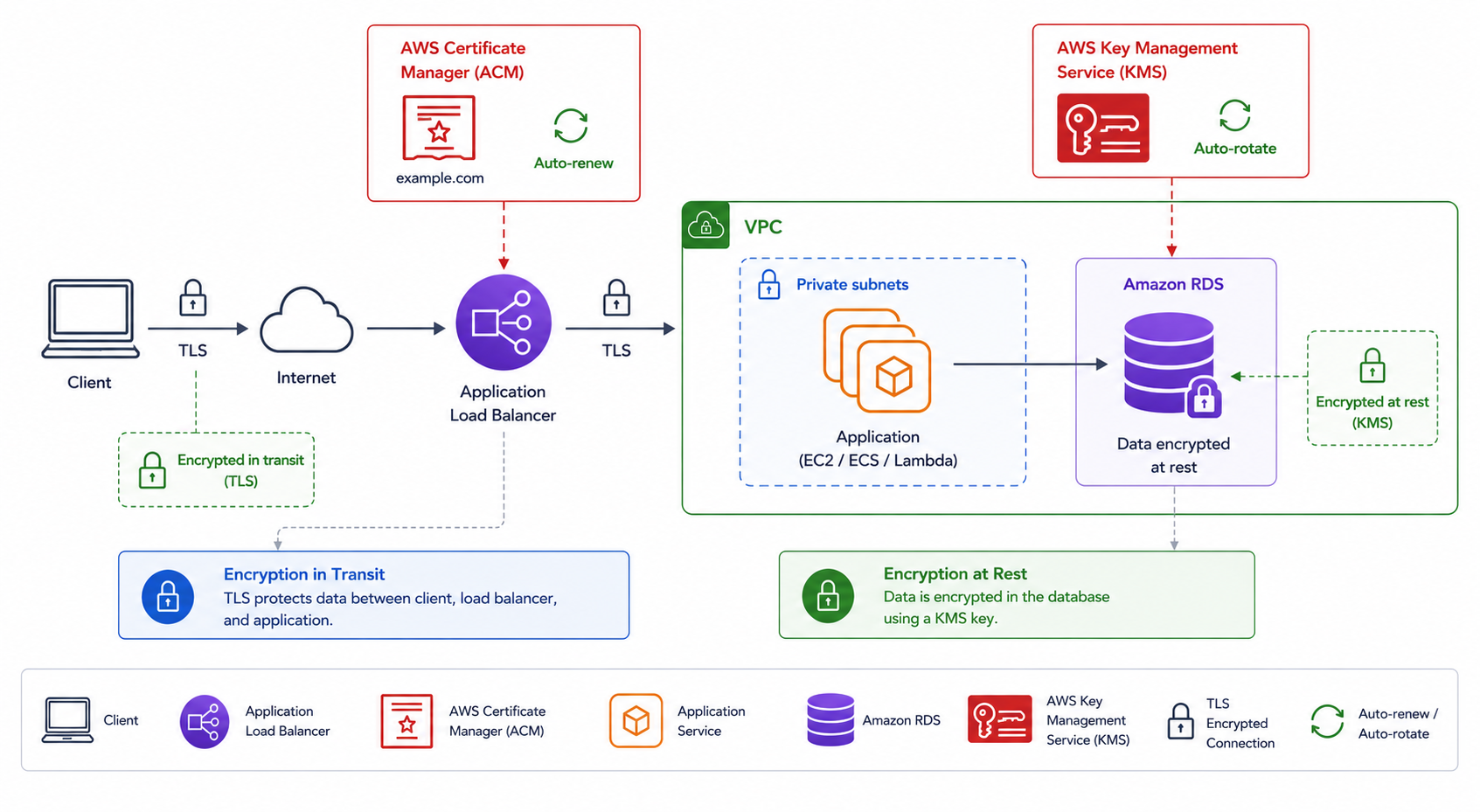

Layered encryption stack: ACM certificate terminating TLS in transit at the edge and KMS key encrypting data at rest, with automated annual renewal and rotation for both

Let's practice!
