从零开始的主题

使用 ggplot2 进行数据可视化入门

Rick Scavetta

Founder, Scavetta Academy

主题层

所有非数据墨迹
非数据的可视元素

主题层

所有非数据墨迹
非数据的可视元素

三类

类型
文本
线条
矩形

主题层

所有非数据墨迹
非数据的可视元素

三类

type	modified using
text	element_text()
line	element_line()
rectangle	element_rect()

初始图...

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_jitter(alpha = 0.6)

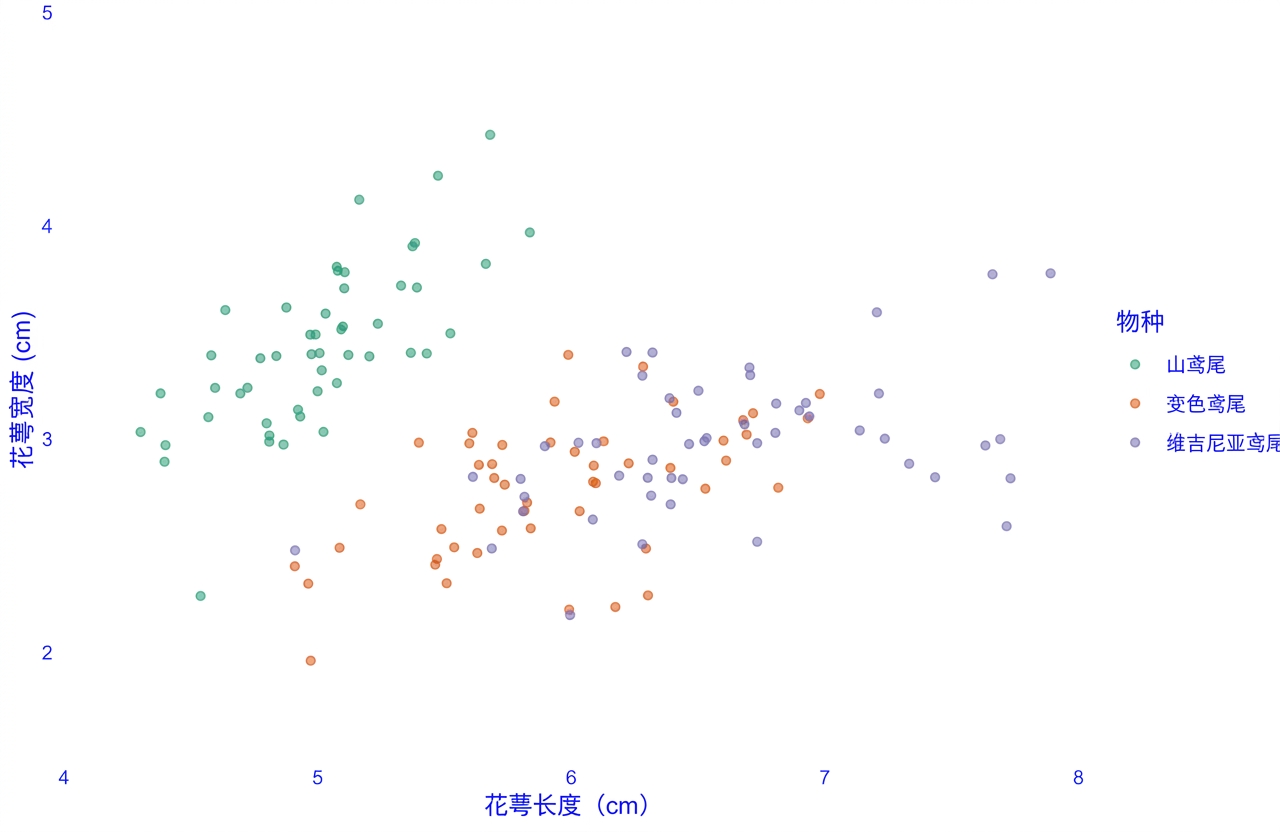

文本元素


text
  axis.title
    axis.title.x
      axis.title.x.top
      axis.title.x.bottom
    axis.title.y
      axis.title.y.left
      axis.title.y.right
  title
    legend.title
    plot.title
    plot.subtitle
    plot.caption
    plot.tag
  axis.text
    axis.text.x
      axis.text.x.top
      axis.text.x.bottom
    axis.text.y
      axis.text.y.left
      axis.text.y.right
  legend.text
  strip.text
    strip.text.x
    strip.text.y

文本元素

theme(
text,
  axis.title,
    axis.title.x,
      axis.title.x.top,
      axis.title.x.bottom,
    axis.title.y,
      axis.title.y.left,
      axis.title.y.right,
  title,
    legend.title,
    plot.title,
    plot.subtitle,
    plot.caption,
    plot.tag,
  axis.text,
    axis.text.x,
      axis.text.x.top,
      axis.text.x.bottom,
    axis.text.y,
      axis.text.y.left,
      axis.text.y.right,
  legend.text,
  strip.text,
    strip.text.x,
    strip.text.y)

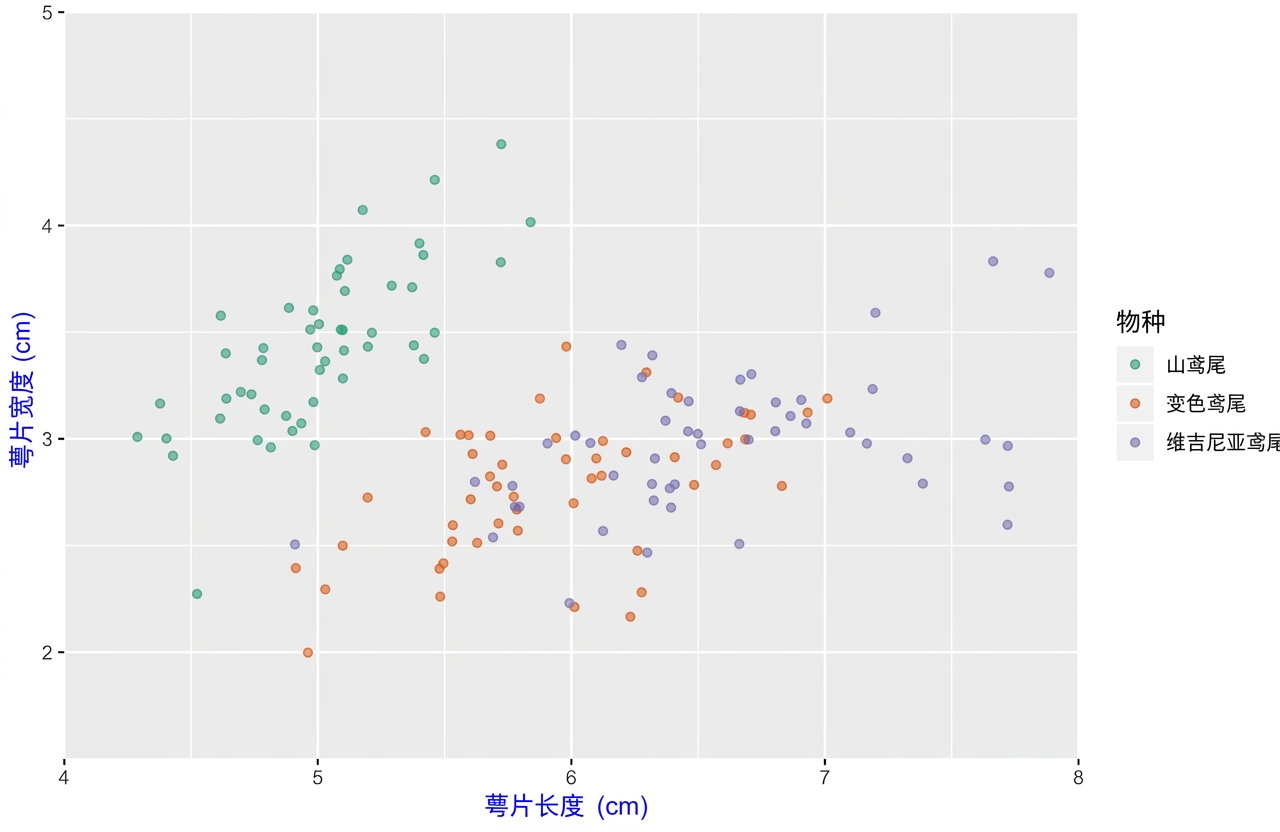

调整主题元素

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_jitter(alpha = 0.6) +
  theme(axis.title = element_text(color = "blue"))

初始图...

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_jitter(alpha = 0.6)

线条元素

theme(
line,
  axis.ticks,
    axis.ticks.x,
      axis.ticks.x.top,
      axis.ticks.x.bottom,
    axis.ticks.y,
      axis.ticks.y.left,
      axis.ticks.y.right,
    axis.line,
      axis.line.x,
        axis.line.x.top,
        axis.line.x.bottom,
      axis.line.y,
        axis.line.y.left,
        axis.line.y.right,
  panel.grid,
    panel.grid.major,
      panel.grid.major.x,
      panel.grid.major.y,
    panel.grid.minor,
      panel.grid.minor.x,
      panel.grid.minor.y)

初始图...

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_jitter(alpha = 0.6)

矩形元素

theme(
rect,
  legend.background,
  legend.key,
  legend.box.background,
  panel.background,
  panel.border,
  plot.background,
  strip.background,
    strip.background.x,
    strip.background.y)

分层命名体现继承规则

如：文本

text
  axis.title
    axis.title.x
      axis.title.x.top
      axis.title.x.bottom
    axis.title.y
      axis.title.y.left
      axis.title.y.right

如：线条

line
  axis.ticks
    axis.ticks.x
      axis.ticks.x.top
      axis.ticks.x.bottom
    axis.ticks.y
      axis.ticks.y.left,
      axis.ticks.y.right
    axis.line
      axis.line.x
        axis.line.x.top
        axis.line.x.bottom
      axis.line.y
        axis.line.y.left
        axis.line.y.right

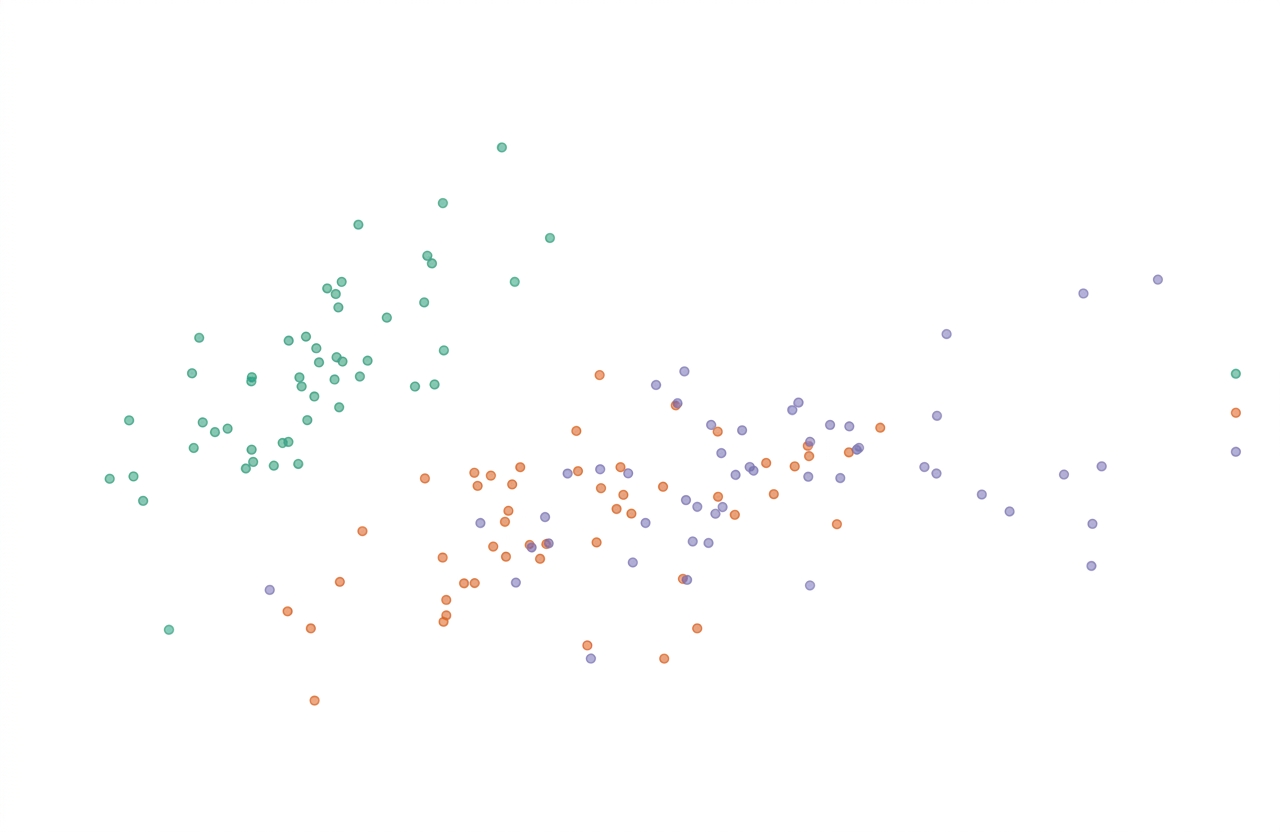

element_blank()

ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width, color = Species)) +
  geom_jitter(alpha = 0.6) +
  theme(line = element_blank(),
        rect = element_blank(),
        text = element_blank())

开始练习吧！
