创建箱线图

Seaborn 数据可视化入门

Content Team

DataCamp

什么是箱线图？

展示定量数据的分布
可见中位数、离散度、偏度与离群值
便于组间比较

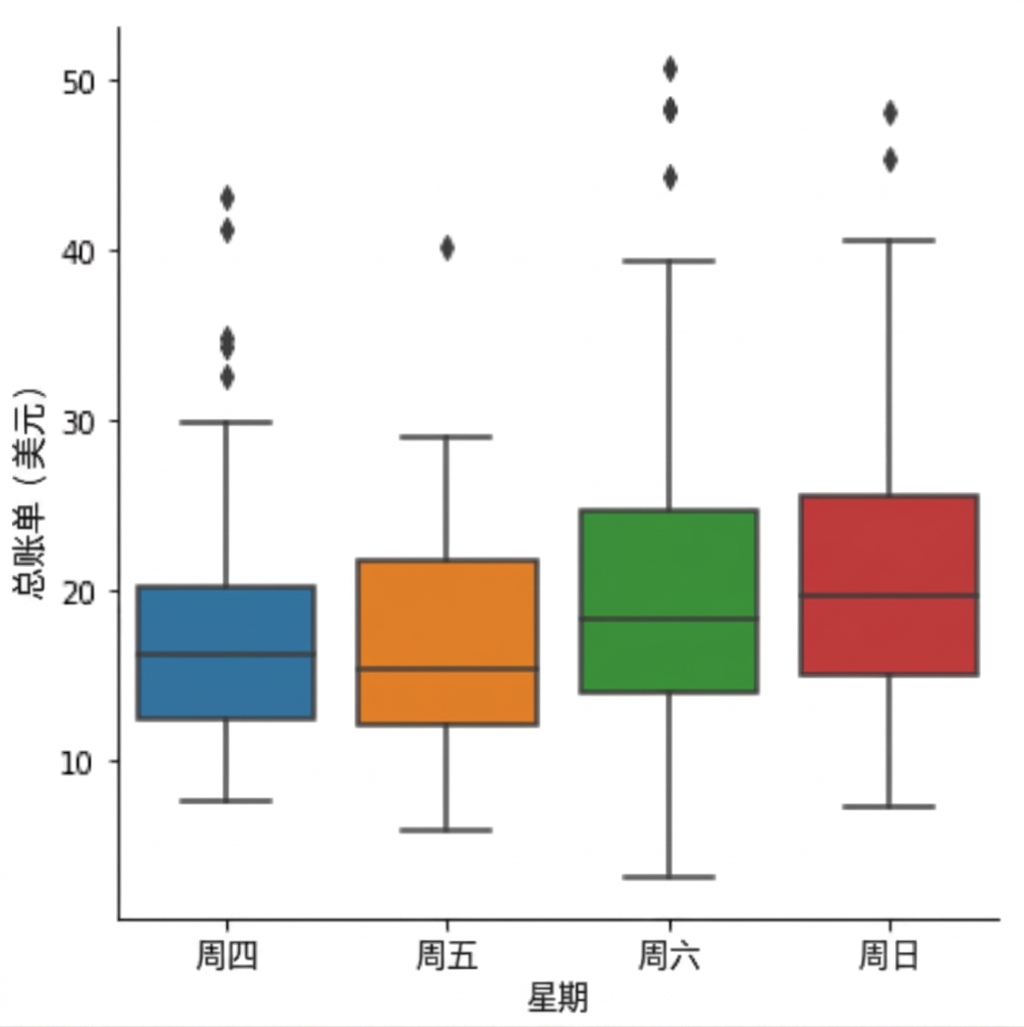

按星期几划分的总账单箱线图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

如何创建箱线图

import matplotlib.pyplot as plt
import seaborn as sns

g = sns.catplot(x="time",
                y="total_bill",
                data=tips,
                kind="box")

plt.show()

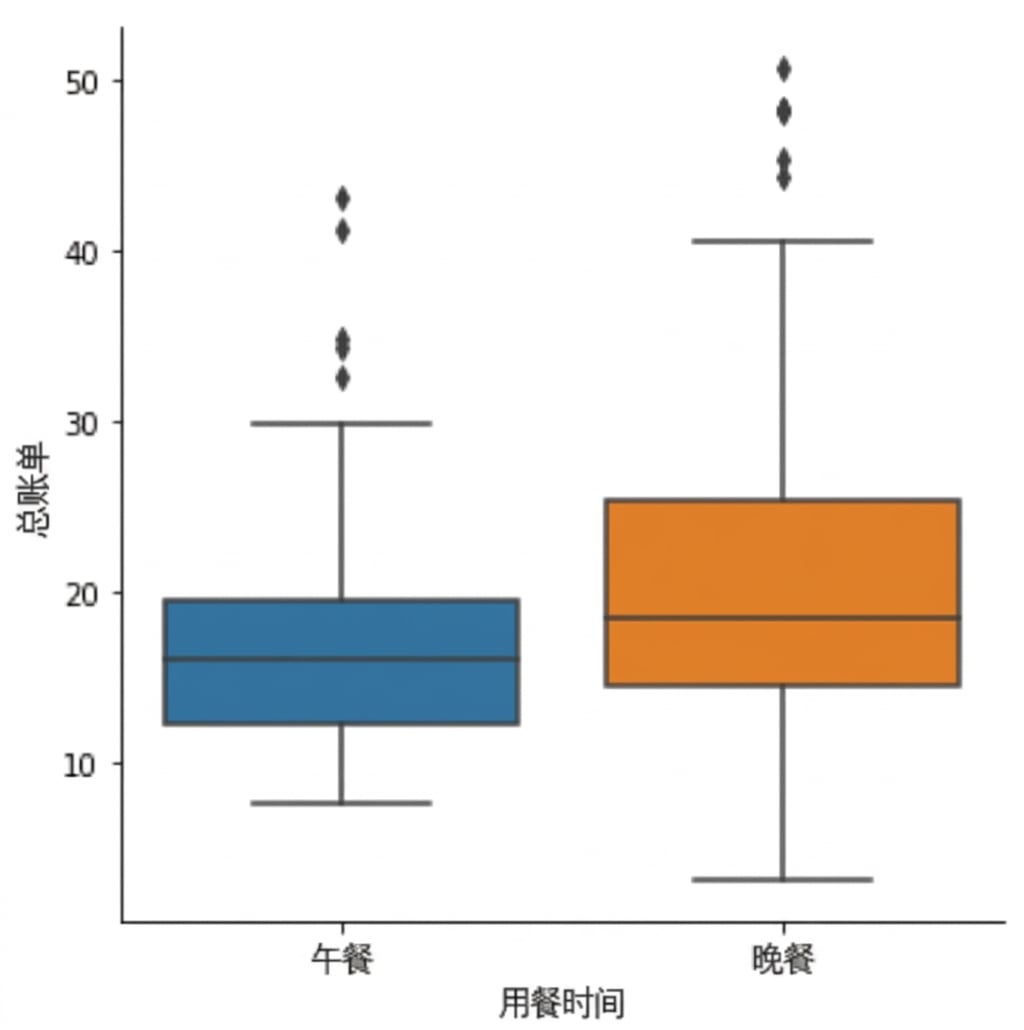

按一天中时间划分的总账单箱线图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

调整类别顺序

import matplotlib.pyplot as plt
import seaborn as sns

g = sns.catplot(x="time",
                y="total_bill",
                data=tips,
                kind="box",
                order=["Dinner",
                       "Lunch"])

plt.show()

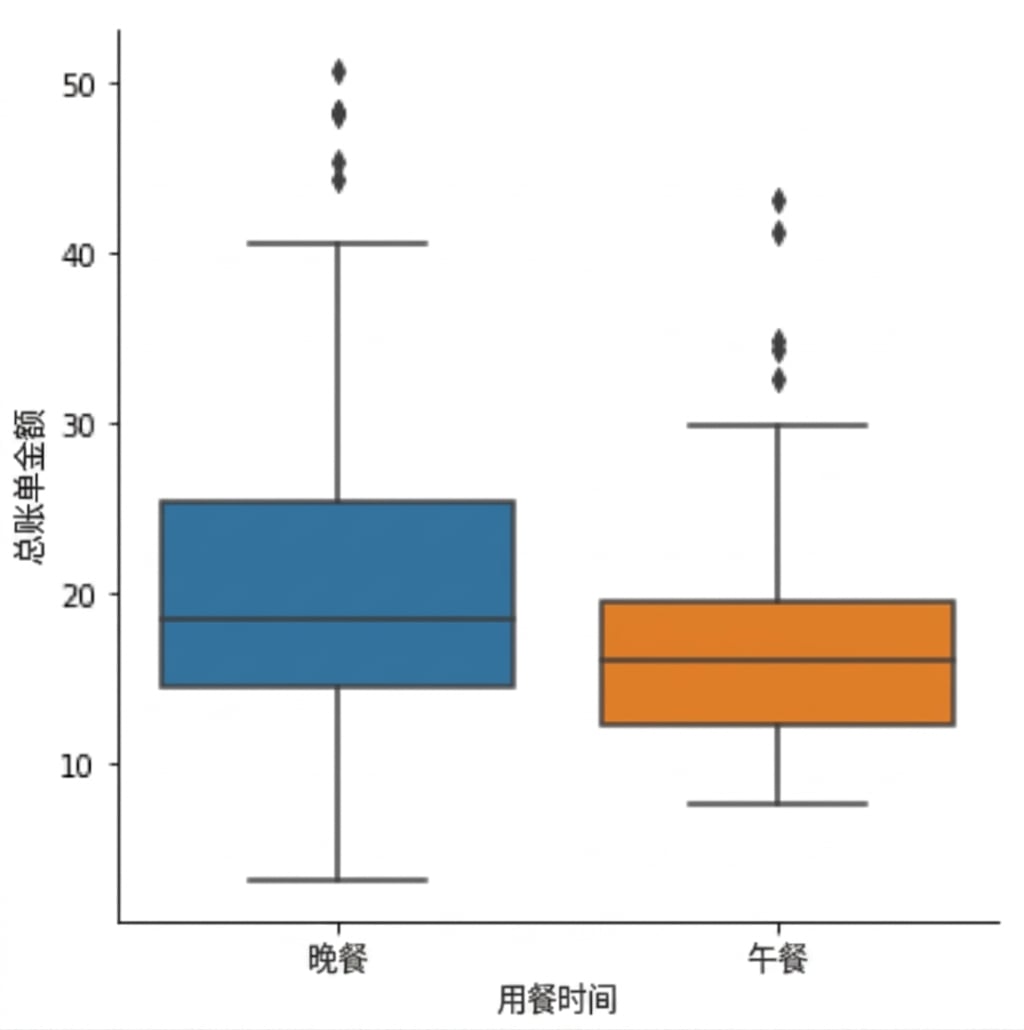

先显示晚餐后显示午餐的箱线图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

省略离群值

import matplotlib.pyplot as plt
import seaborn as sns

g = sns.catplot(x="time",
                y="total_bill",
                data=tips,
                kind="box",
                showfliers=False)

plt.show()

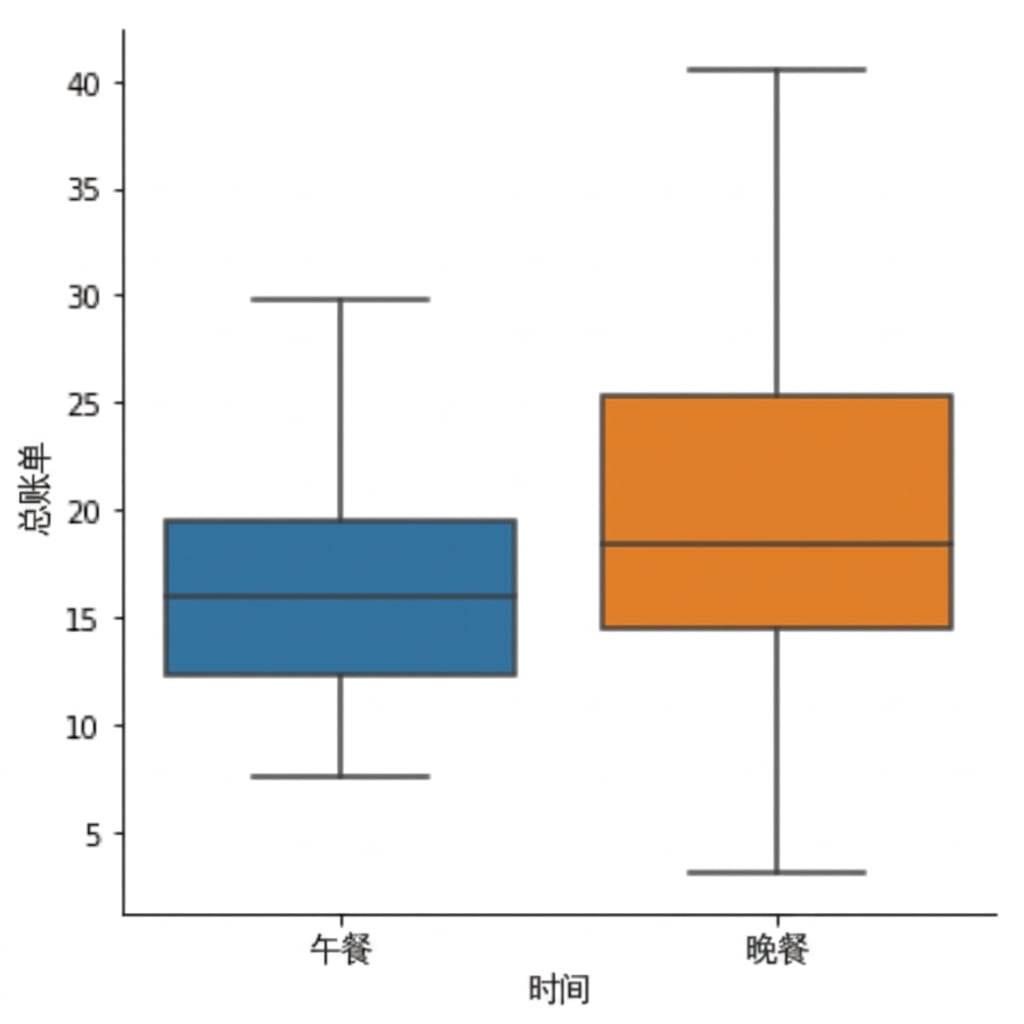

省略离群值的箱线图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

用 `whis` 调整须状线

默认须状线延伸至 1.5 倍四分位距
设为延伸至 2.0 倍 IQR：whis=2.0
显示第 5 和第 95 百分位：whis=[5, 95]
显示最小值与最大值：whis=[0, 100]

用 `whis` 调整须状线

import matplotlib.pyplot as plt
import seaborn as sns

g = sns.catplot(x="time",
                y="total_bill",
                data=tips,
                kind="box",
                whis=[0, 100])

plt.show()

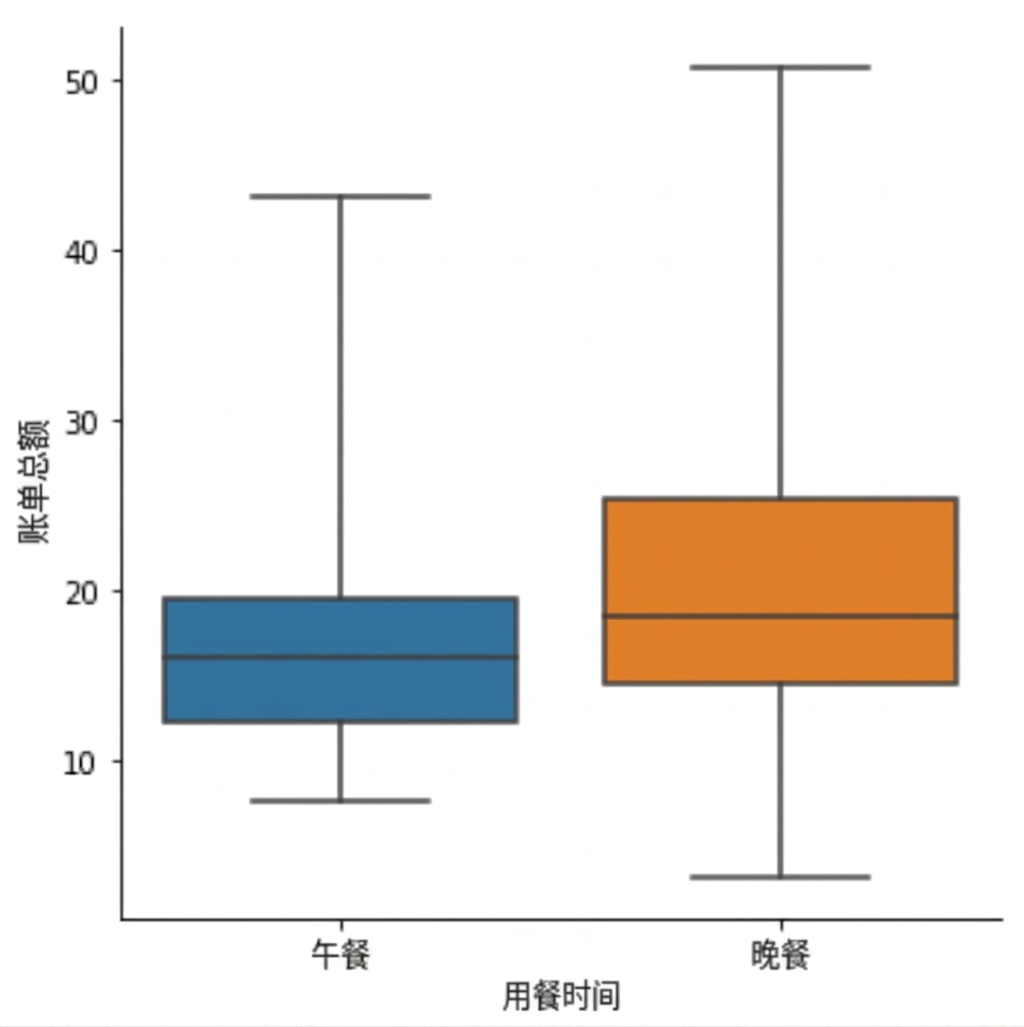

须状线设为最小值与最大值的箱线图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

开始练习！

Seaborn 数据可视化入门
