关系图与子图简介

Seaborn 数据可视化入门

Content Team

DataCamp

关于定量变量的问题

关系图

身高 vs. 体重

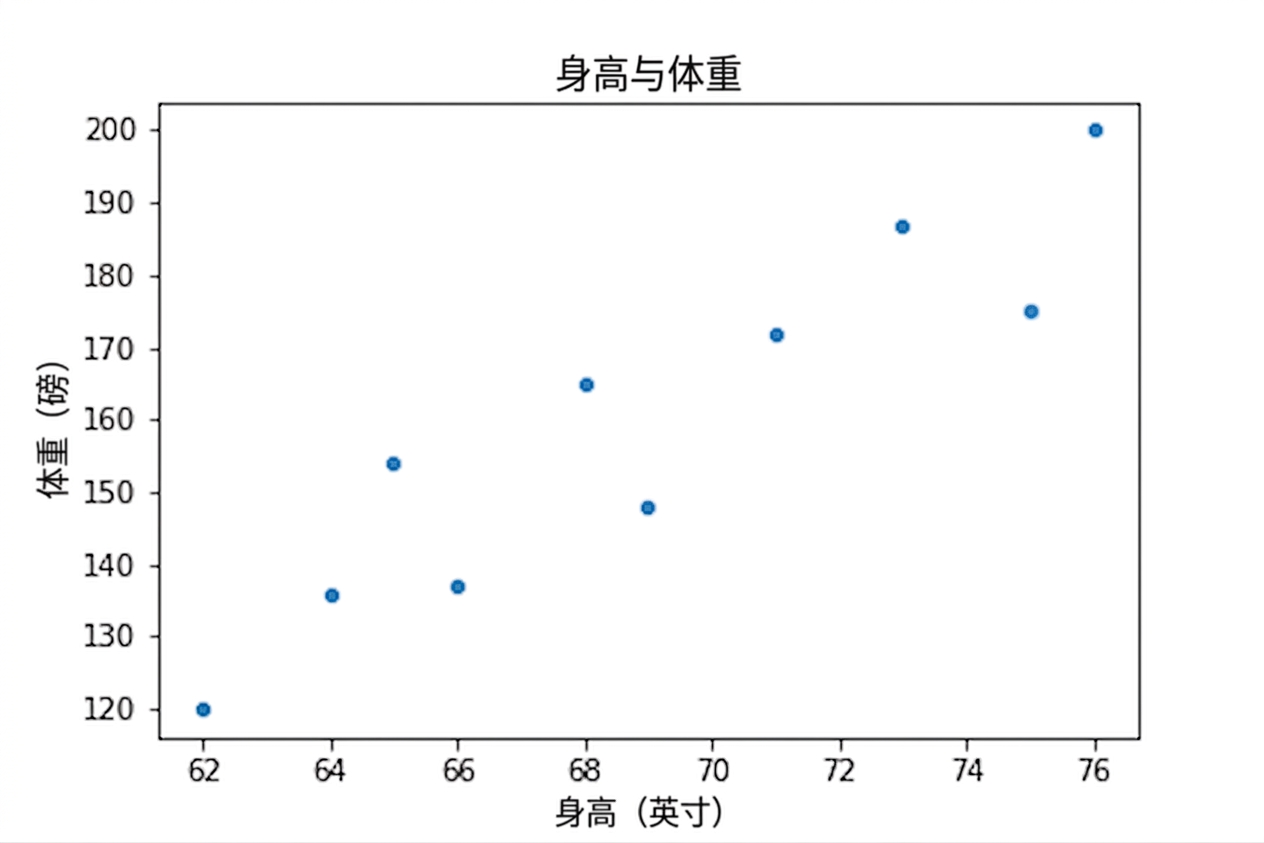

身高与体重的散点图

关于定量变量的问题

关系图

身高 vs. 体重
缺课次数 vs. 期末成绩

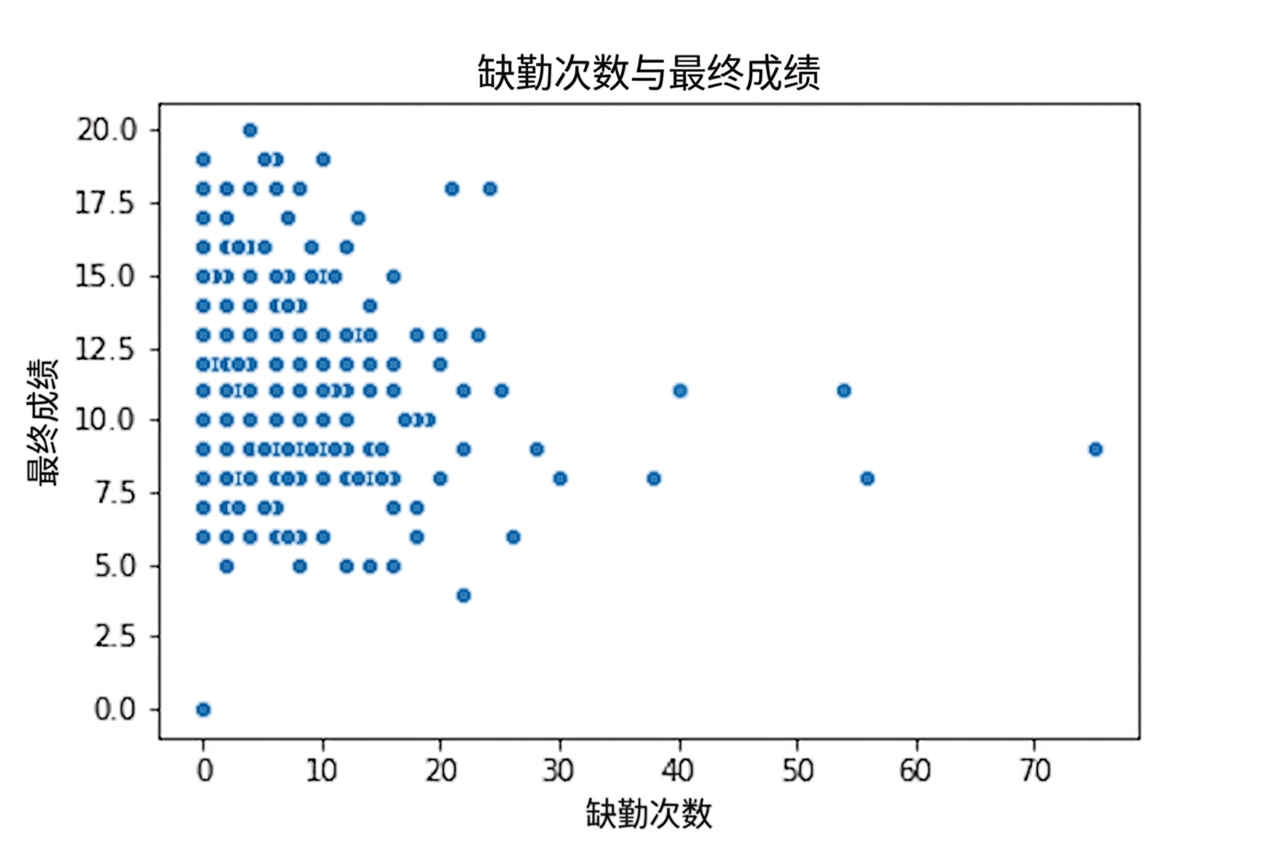

缺课次数与期末成绩的散点图

关于定量变量的问题

关系图

身高 vs. 体重
缺课次数 vs. 期末成绩
GDP vs. 识字率

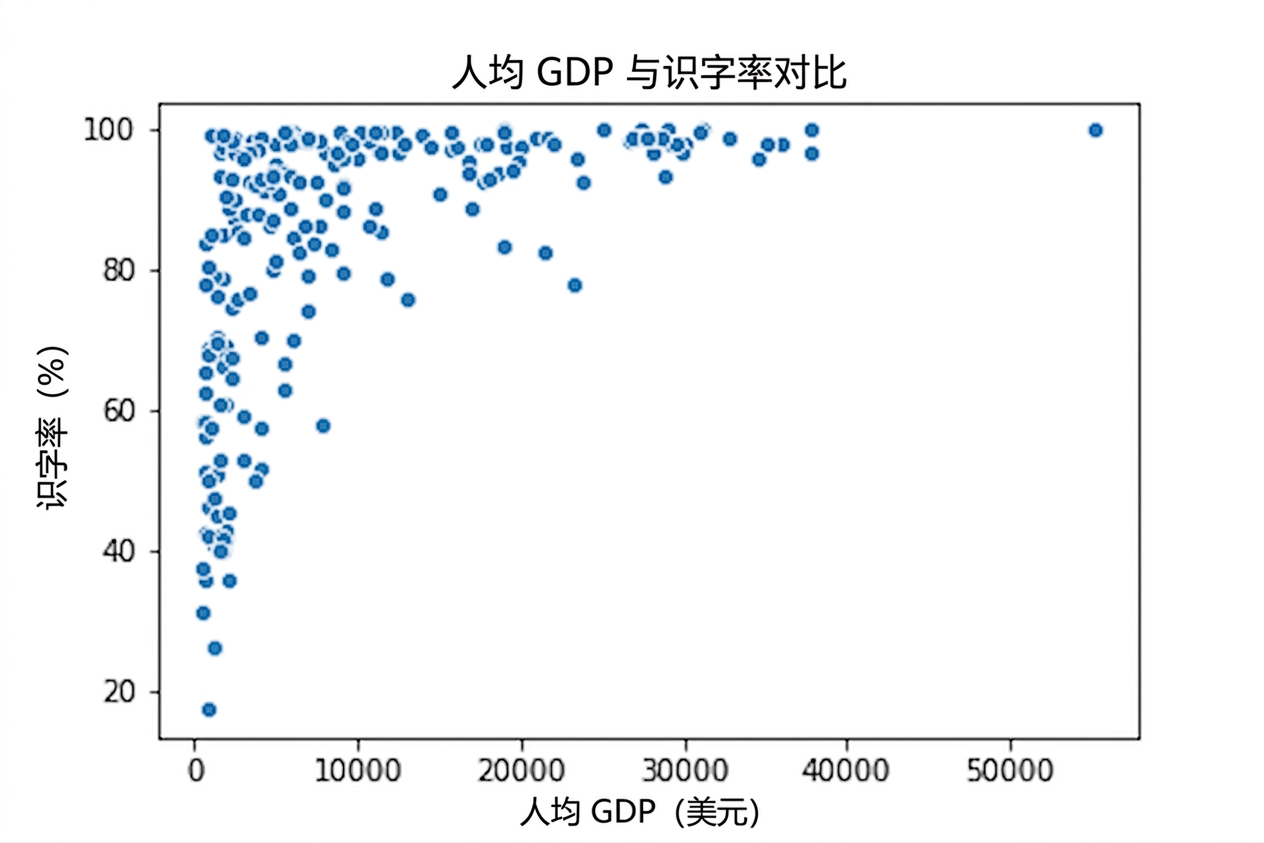

GDP 与识字率的散点图

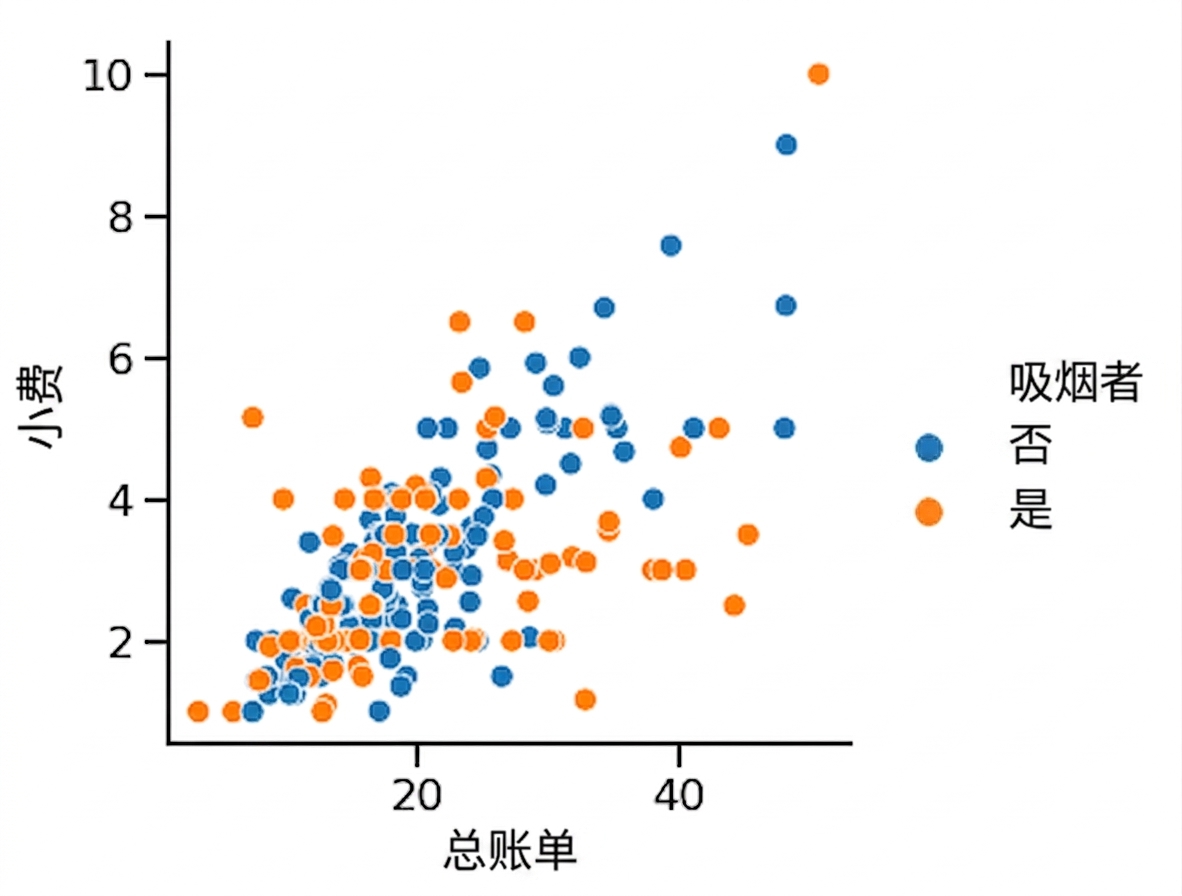

带色相的散点图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

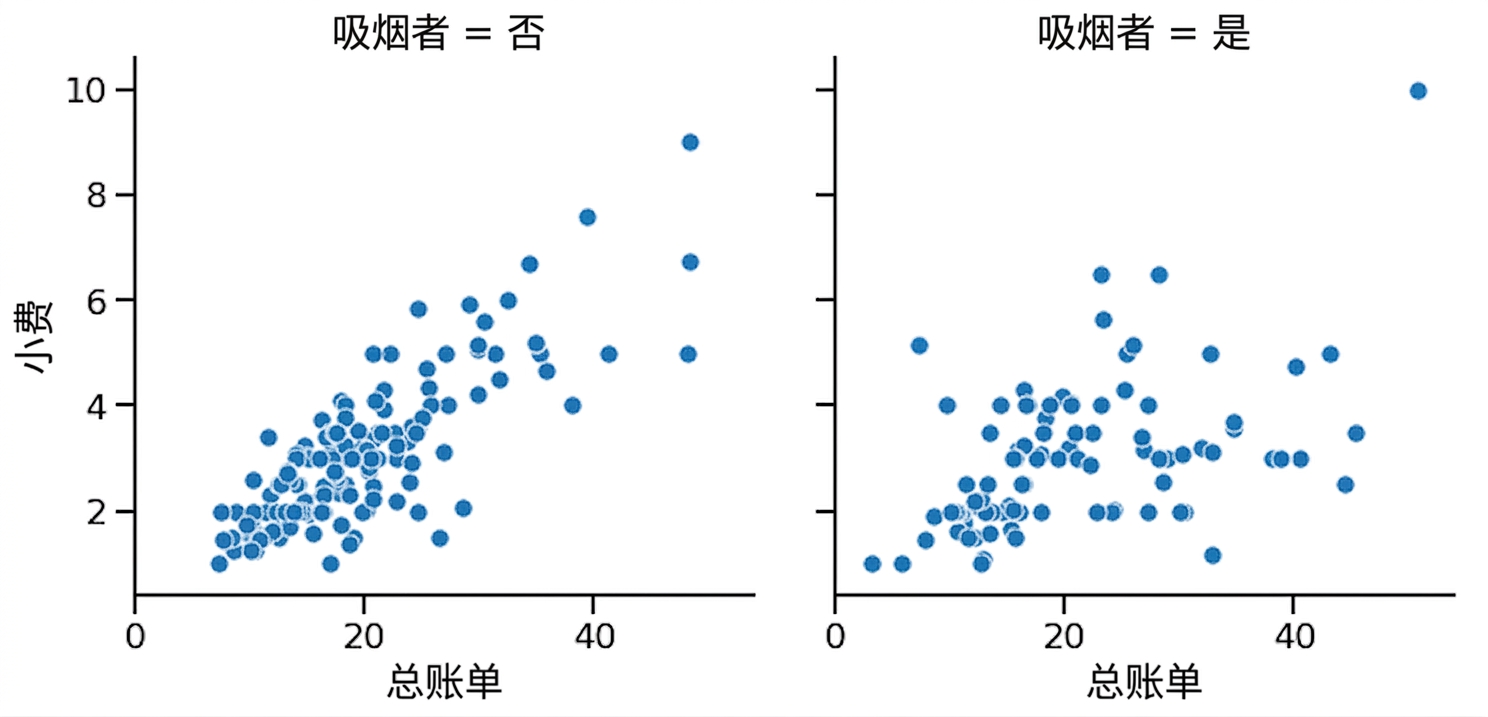

带子图的散点图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

relplot() 简介

创建"关系图"：散点图或折线图

为何用 relplot() 而非 scatterplot()？

relplot() 可在一张图中创建多个子图

scatterplot() vs. relplot()

使用 scatterplot()

import seaborn as sns
import matplotlib.pyplot as plt

sns.scatterplot(x="total_bill",
                y="tip",
                data=tips)

plt.show()

使用 relplot()

import seaborn as sns
import matplotlib.pyplot as plt

sns.relplot(x="total_bill",
            y="tip",
            data=tips,
            kind="scatter")

plt.show()

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

按列创建子图

import seaborn as sns
import matplotlib.pyplot as plt

sns.relplot(x="total_bill",
            y="tip",
            data=tips,
            kind="scatter",
            col="smoker")

plt.show()

按是否吸烟分列的散点子图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

按行创建子图

import seaborn as sns
import matplotlib.pyplot as plt

sns.relplot(x="total_bill",
            y="tip",
            data=tips,
            kind="scatter",
            row="smoker")

plt.show()

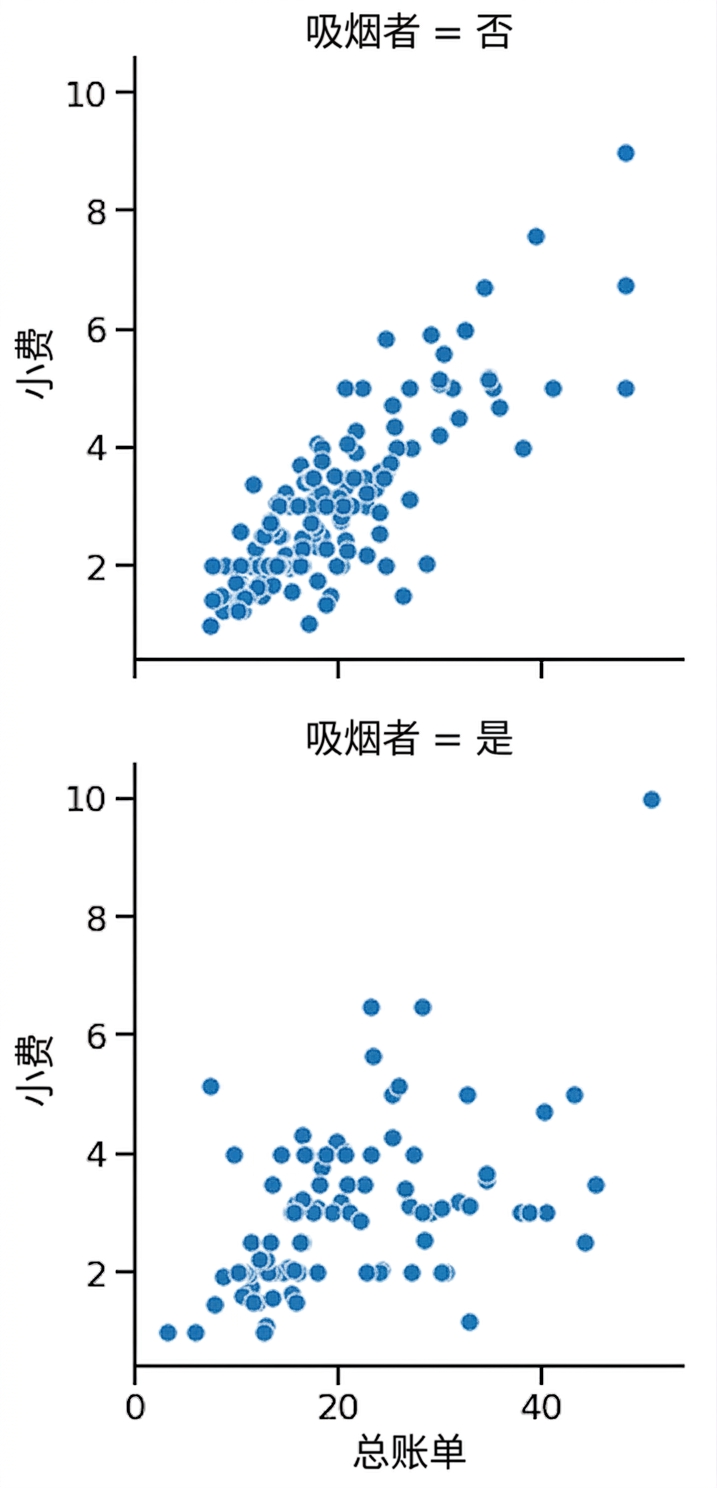

按是否吸烟分行的散点子图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

按行与列创建子图

import seaborn as sns
import matplotlib.pyplot as plt

sns.relplot(x="total_bill",
            y="tip",
            data=tips,
            kind="scatter",
            col="smoker",
            row="time")

plt.show()

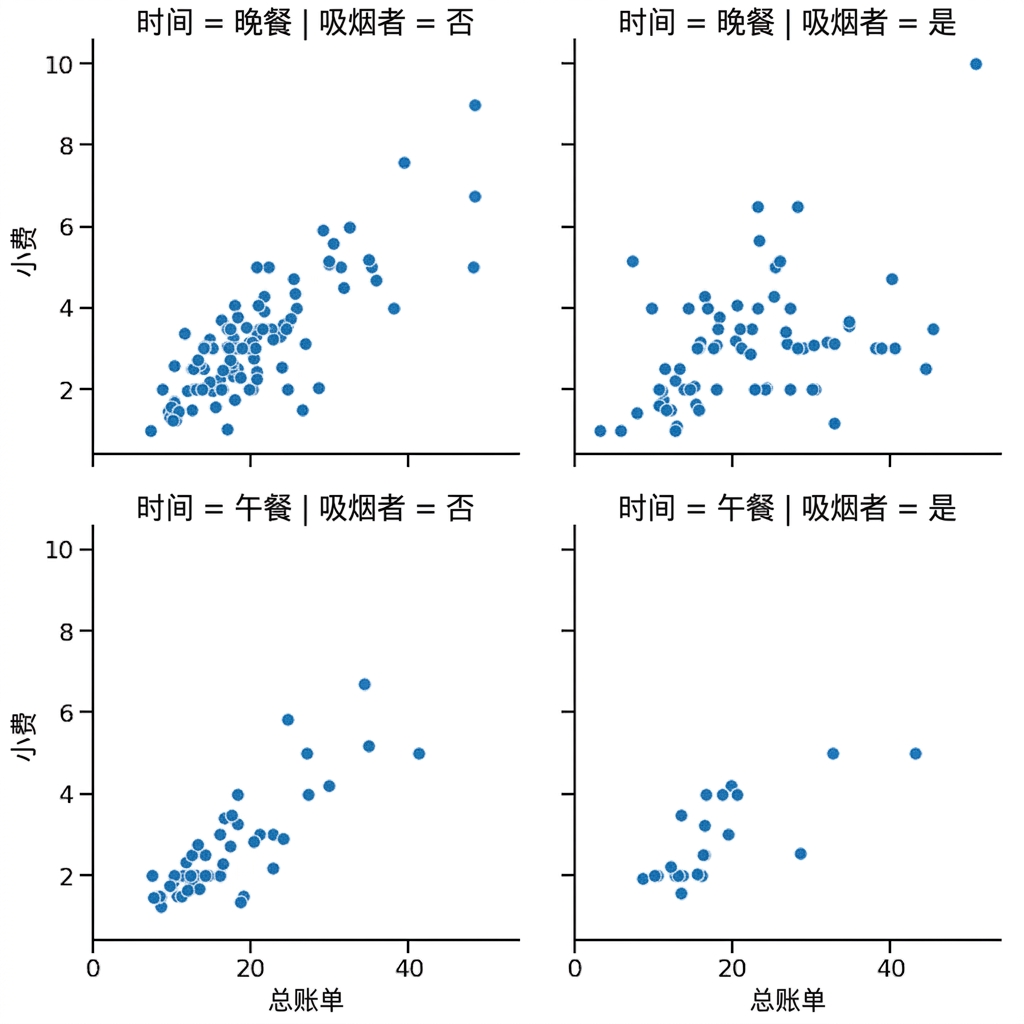

按是否吸烟与用餐时段的子图散点图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

按星期创建子组

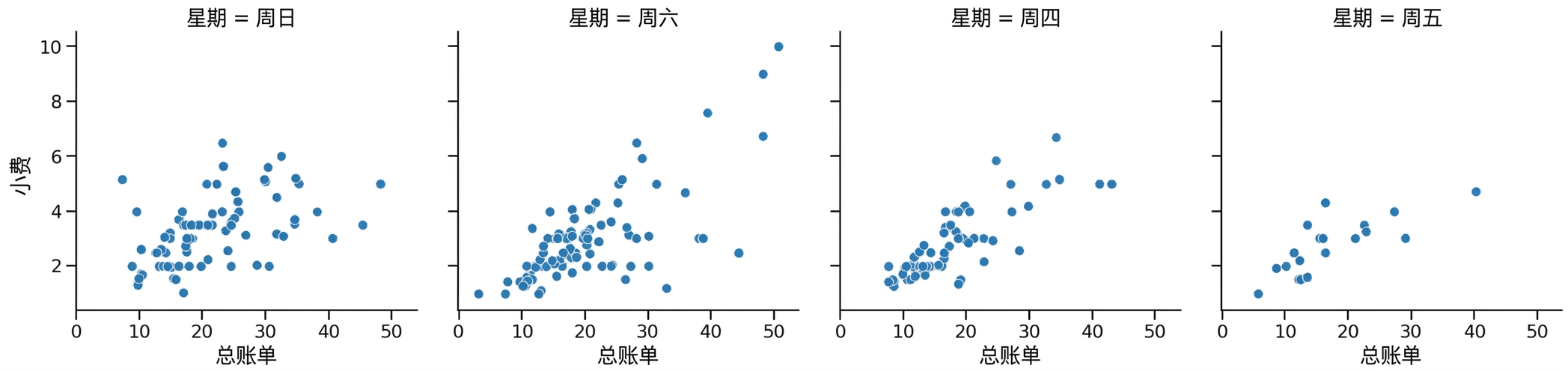

按星期几分列的散点子图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

列换行显示

import seaborn as sns
import matplotlib.pyplot as plt

sns.relplot(x="total_bill",
            y="tip",
            data=tips,
            kind="scatter",
            col="day",
            col_wrap=2)

plt.show()

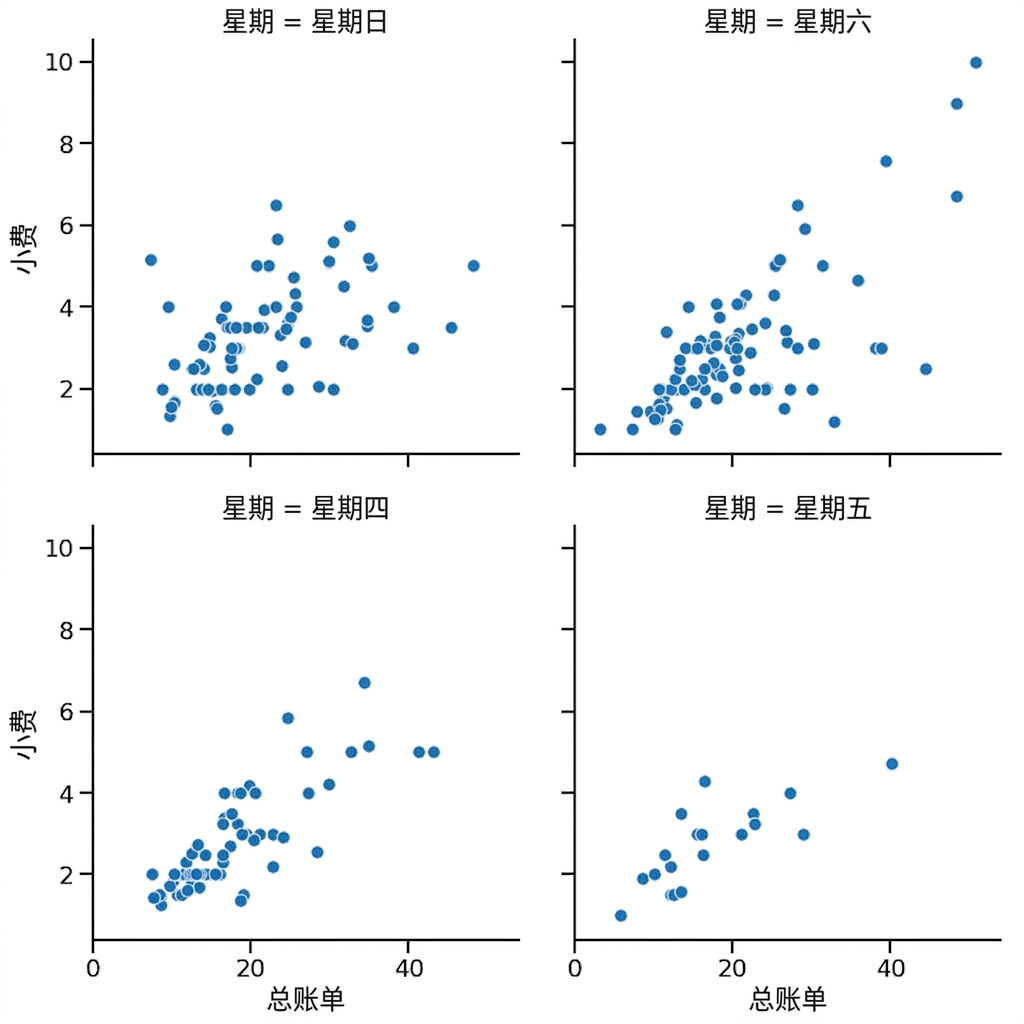

按星期分列并换行的散点子图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

设置列顺序

import seaborn as sns
import matplotlib.pyplot as plt

sns.relplot(x="total_bill",
            y="tip",
            data=tips,
            kind="scatter",
            col="day",
            col_wrap=2,
            col_order=["Thur",
                       "Fri",
                       "Sat",
                       "Sun"])

plt.show()

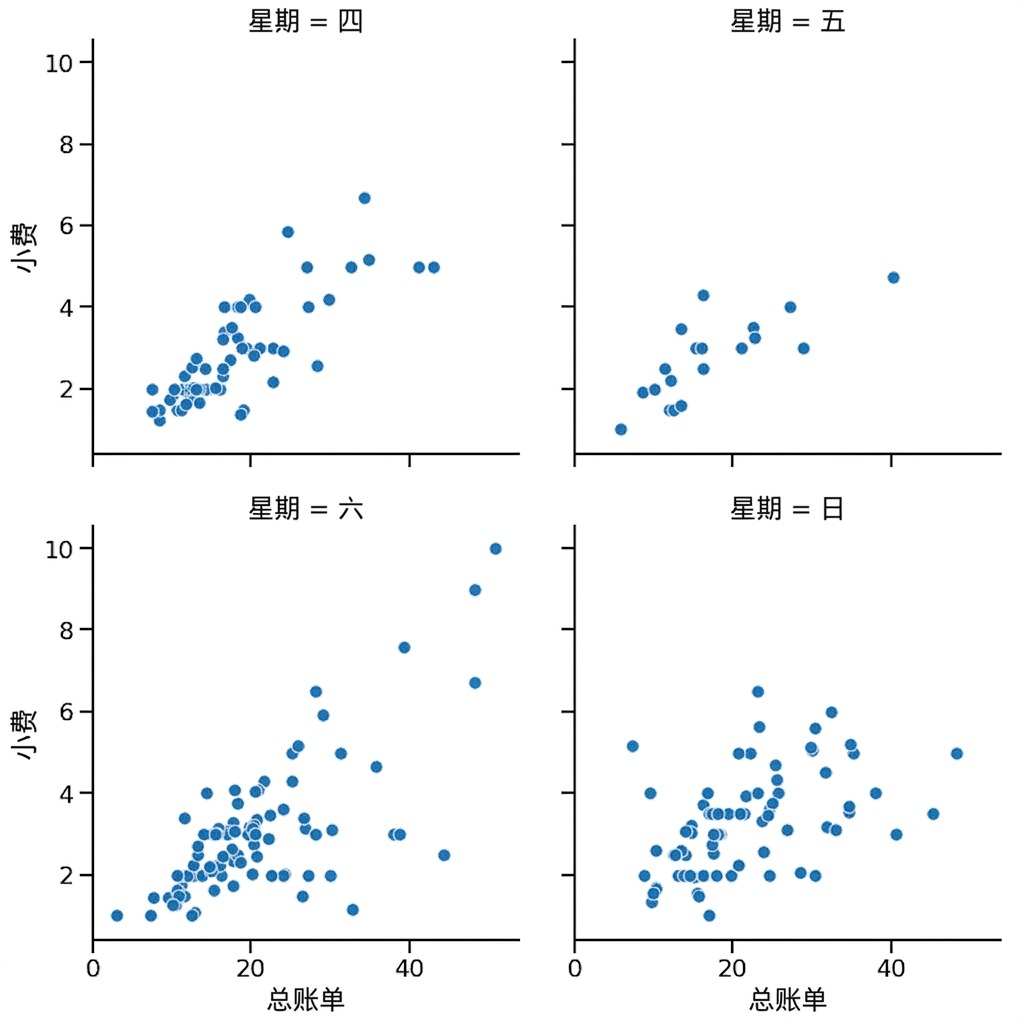

按指定顺序排列的星期子图散点图

¹ Waskom, M. L. (2021). seaborn: statistical data visualization. https://seaborn.pydata.org/

让我们来练习！
