准备与你人分享的图表

Matplotlib 数据可视化入门

Ariel Rokem

Data Scientist

更改图表样式

import matplotlib.pyplot as plt
fig, ax = plt.subplots()
ax.plot(seattle_weather["MONTH"], seattle_weather["MLY-TAVG-NORMAL"])
ax.plot(austin_weather["MONTH"], austin_weather["MLY-TAVG-NORMAL"])
ax.set_xlabel("Time (months)")
ax.set_ylabel("Average temperature (Fahrenheit degrees)")
plt.show()

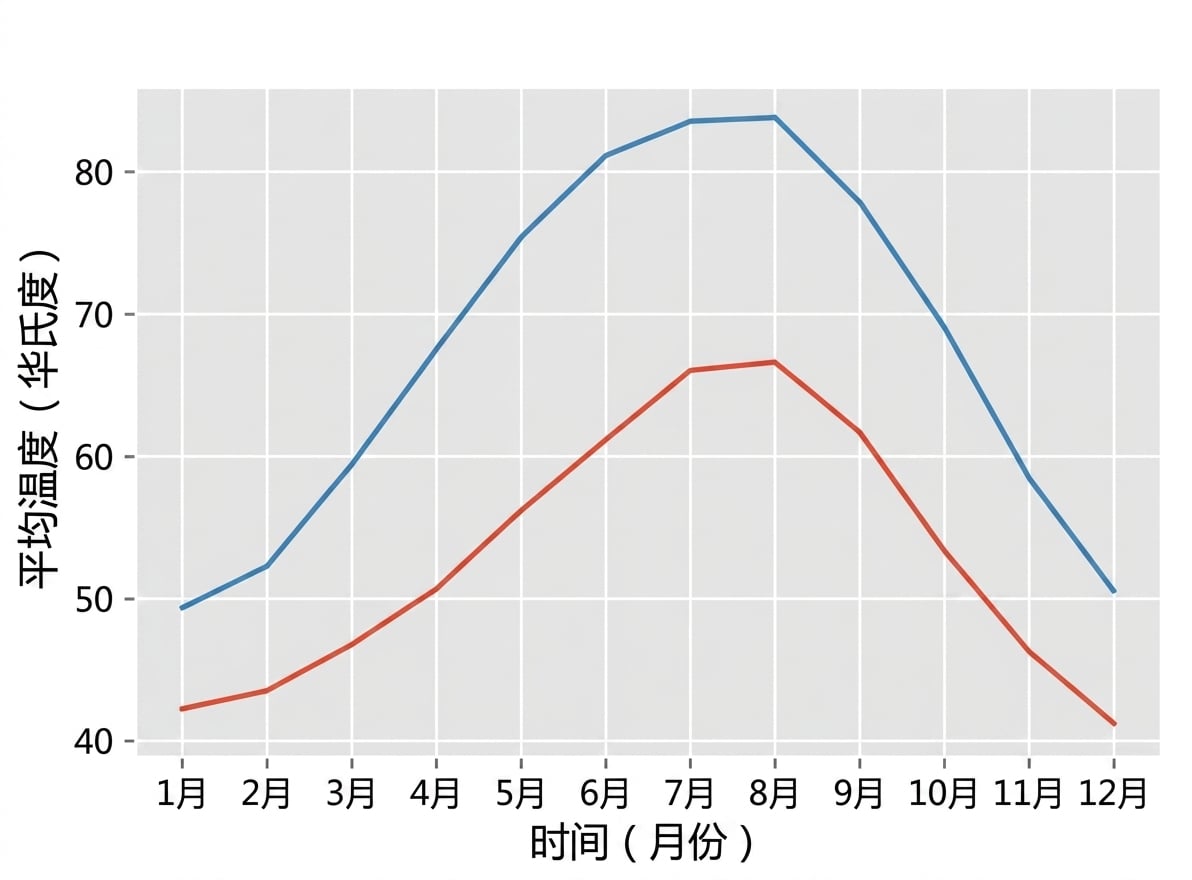

选择样式

plt.style.use("ggplot")

fig, ax = plt.subplots()
ax.plot(seattle_weather["MONTH"], seattle_weather["MLY-TAVG-NORMAL"])
ax.plot(austin_weather["MONTH"], austin_weather["MLY-TAVG-NORMAL"])
ax.set_xlabel("Time (months)")
ax.set_ylabel("Average temperature (Fahrenheit degrees)")
plt.show()

回到默认值

plt.style.use("default")

可用样式

https://matplotlib.org/stable/gallery/style_sheets/ style_sheets_reference.html

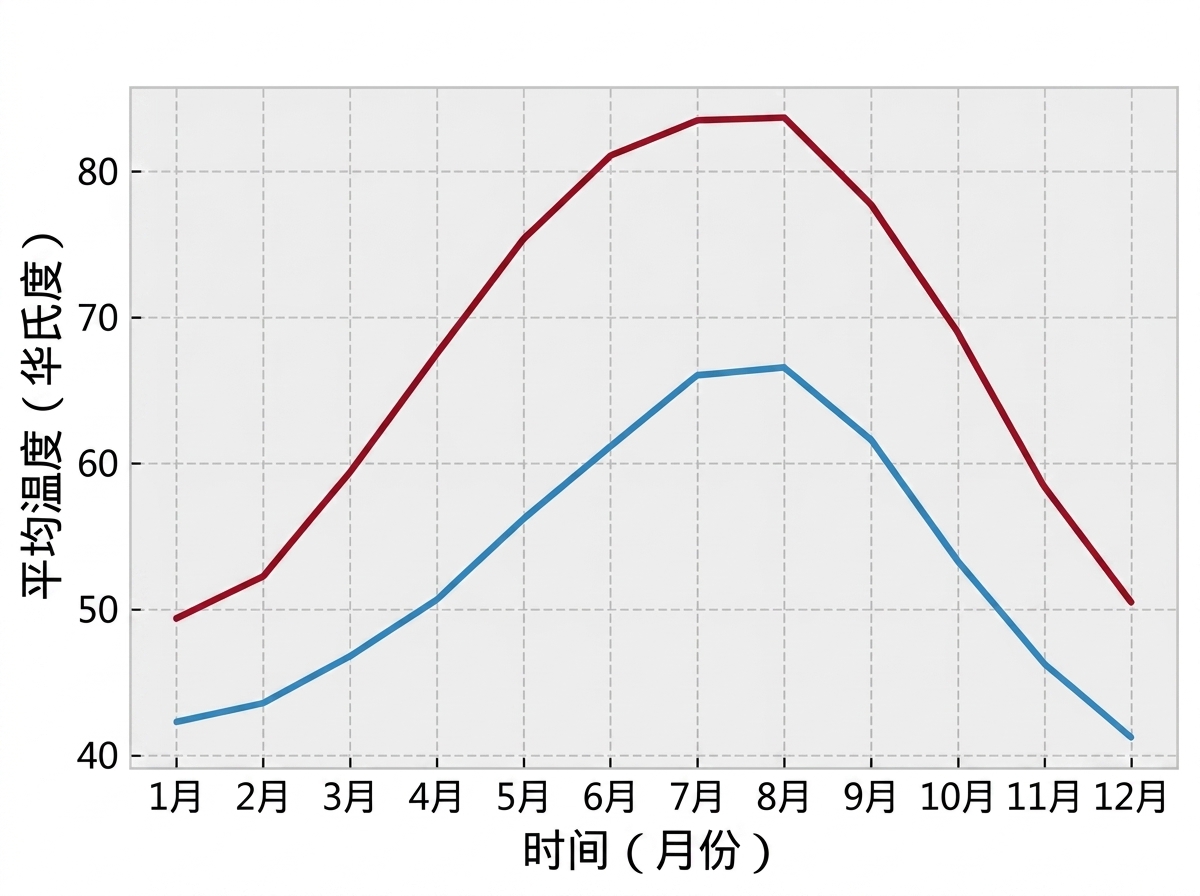

"bmh" 样式

plt.style.use("bmh")

fig, ax = plt.subplots()
ax.plot(seattle_weather["MONTH"], seattle_weather["MLY-TAVG-NORMAL"])
ax.plot(austin_weather["MONTH"], austin_weather["MLY-TAVG-NORMAL"])
ax.set_xlabel("Time (months)")
ax.set_ylabel("Average temperature (Fahrenheit degrees)")
plt.show()

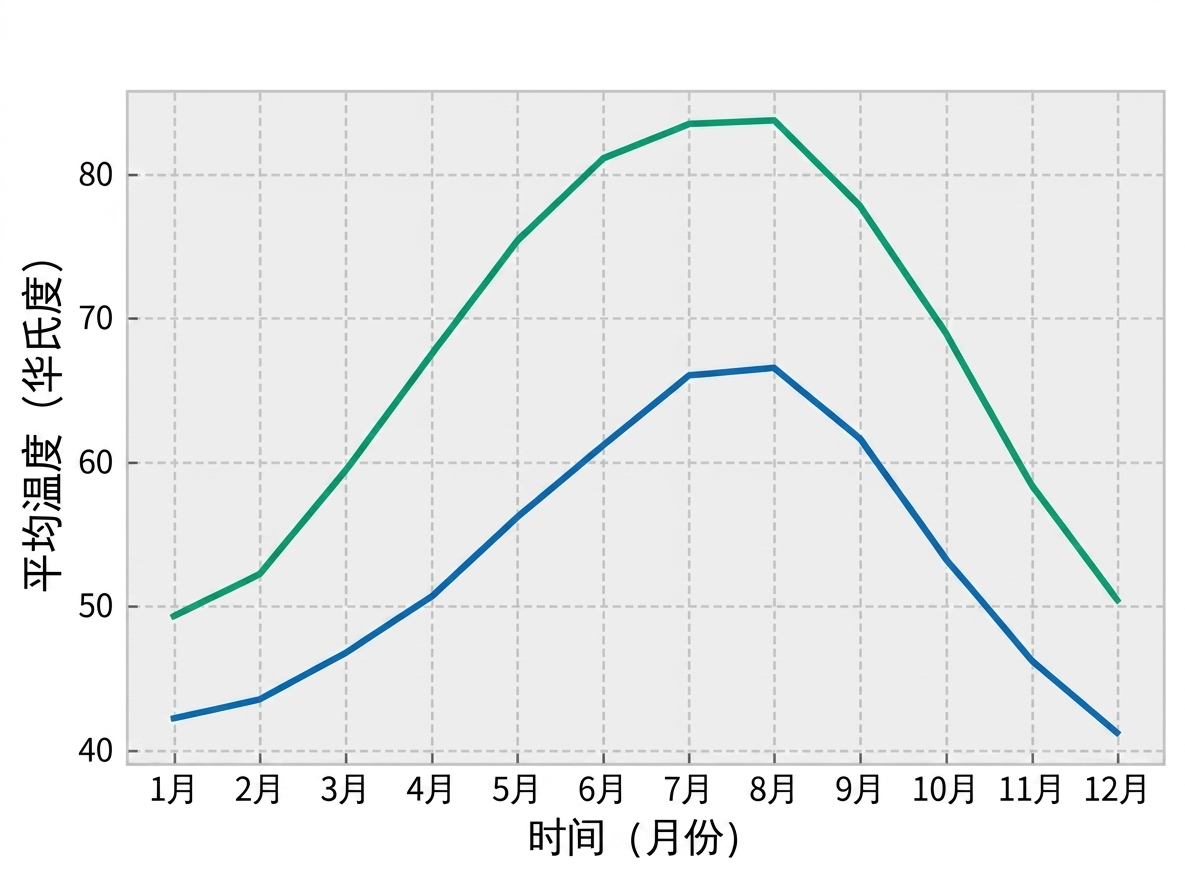

Seaborn 样式

plt.style.use("seaborn-colorblind")

fig, ax = plt.subplots()
ax.plot(seattle_weather["MONTH"], seattle_weather["MLY-TAVG-NORMAL"])
ax.plot(austin_weather["MONTH"], austin_weather["MLY-TAVG-NORMAL"])
ax.set_xlabel("Time (months)")
ax.set_ylabel("Average temperature (Fahrenheit degrees)")
plt.show()

选择绘图样式的指南

深色背景通常可读性较差
若颜色很重要，请考虑色盲友好选项
- "seaborn-colorblind" 或 "tableau-colorblind10"
若他人可能打印图表，请减少用墨
若将以黑白打印，请用 "grayscale" 样式

练习为你选择合适的样式！

Matplotlib 数据可视化入门
