Hyperparameter tuning with caret

Hyperparameter Tuning in R

Dr. Shirin Elsinghorst

Senior Data Scientist

Automatic hyperparameter tuning in caret

Random Forest

...

Resampling results across tuning parameters:

  mtry  Accuracy   Kappa
   2    0.9006783  0.8015924
   6    0.9126645  0.8253289
  10    0.8999389  0.7999386

Accuracy was used to select the optimal model using the largest value.
The final value used for the model was mtry = 6.

Hyperparameters are specific to model algorithms

modelLookup(model)

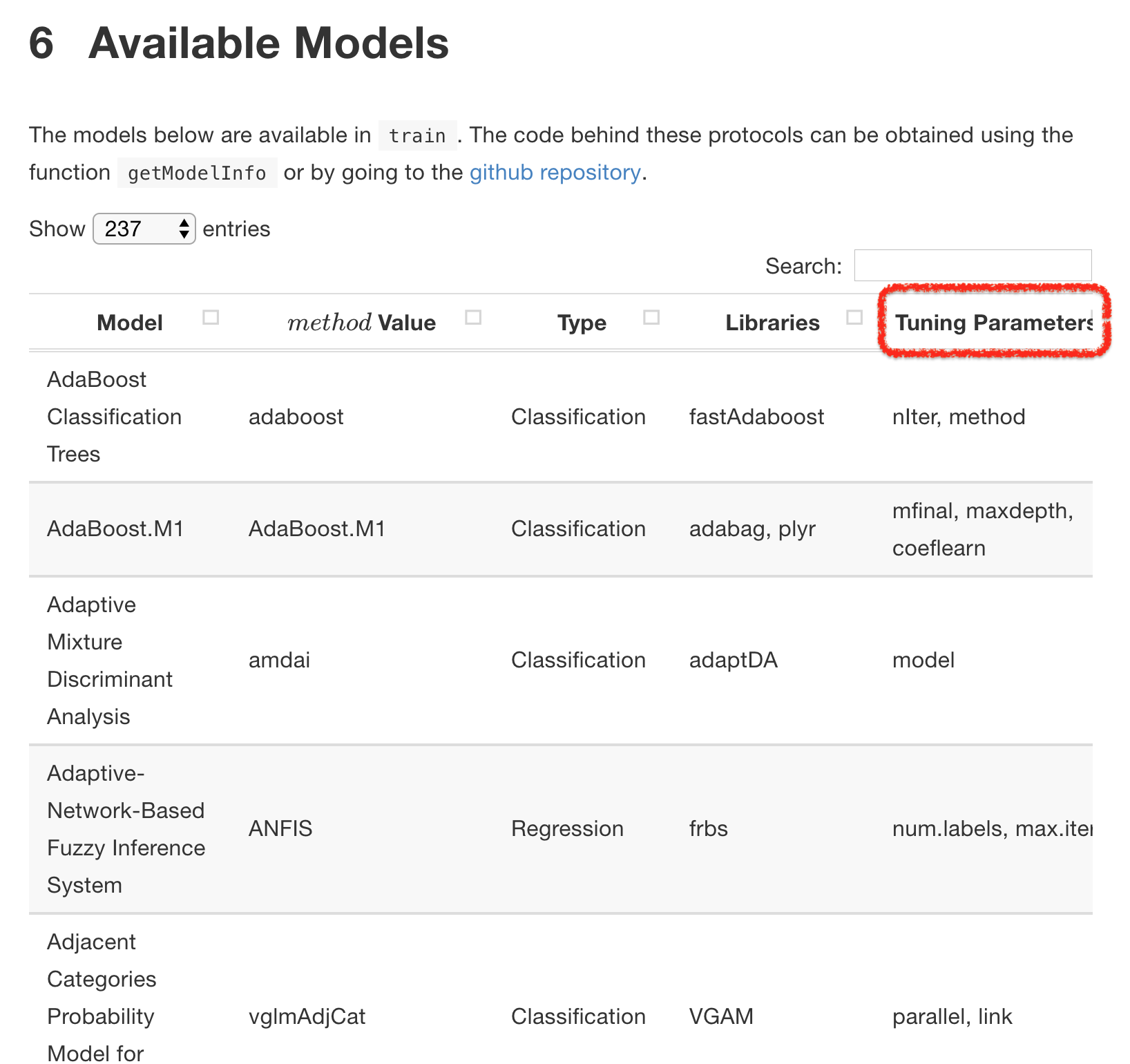

https://topepo.github.io/caret/available-models.html

Hyperparameters in Support Vector Machines (SVM)

fitControl <- trainControl(method = "repeatedcv", number = 3, repeats = 5)

tic()
svm_model <- train(diagnosis ~ .,
                   data = bc_train_data,
                   method = "svmPoly",
                   trControl = fitControl,
                   verbose= FALSE)
toc()

3.836 sec elapsed

Hyperparameters in Support Vector Machines (SVM)

svm_model

Support Vector Machines with Polynomial Kernel
...

Resampling results across tuning parameters:

  degree  scale  C     Accuracy   Kappa
  1       0.100  1.00  0.9104803  0.8211459

Accuracy was used to select the optimal model using the largest value.
The final values used for the model were degree = 1, scale = 0.1 and C = 1.

Defining hyperparameters for automatic tuning

tuneLength

tic()
set.seed(42)
svm_model_2 <- train(diagnosis ~ .,
                     data = bc_train_data,
                     method = "svmPoly",
                     trControl = fitControl,
                     verbose = FALSE,
                     tuneLength = 5)
toc()

7.458 sec elapsed

Accuracy was used to select the optimal model using the largest value.
The final values used for the model were degree = 1, scale = 1 and C = 1.

Manual hyperparameter tuning in caret

tuneGrid + expand.grid

hyperparams <- expand.grid(degree = 4, scale = 1, C = 1)

tic()
set.seed(42)
svm_model_3 <- train(diagnosis ~ .,
                     data = bc_train_data,
                     method = "svmPoly",
                     trControl = fitControl,
                     tuneGrid = hyperparams,
                     verbose = FALSE)
toc()

0.691 sec elapsed

Manual hyperparameter tuning in caret

svm_model_3

Support Vector Machines with Polynomial Kernel

...

  Accuracy   Kappa
  0.7772947  0.554812

Tuning parameter 'degree' was held constant at a value of 4
Tuning parameter 'scale' was held constant at a value of 1
Tuning parameter 'C' was
 held constant at a value of 1

It's your turn!

Hyperparameter Tuning in R
