Matrix Plots

Intermediate Data Visualization with Seaborn

Chris Moffitt

Instructor

Getting data in the right format

  • Seaborn's heatmap() function requires data to be in a grid format
  • pandas crosstab() is frequently used to manipulate the data
pd.crosstab(df["mnth"], df["weekday"],
values=df["total_rentals"],aggfunc="mean").round(0)

data grid

Intermediate Data Visualization with Seaborn

Build a heatmap

sns.heatmap(pd.crosstab(df["mnth"], df["weekday"],
            values=df["total_rentals"], aggfunc="mean")
)

heatmap example

Intermediate Data Visualization with Seaborn

Customize a heatmap

sns.heatmap(df_crosstab, annot=True, fmt="d",
            cmap="YlGnBu", cbar=False, linewidths=.5)

heatmap example 2

Intermediate Data Visualization with Seaborn

Centering a heatmap

  • Seaborn support centering the heatmap colors on a specific value
sns.heatmap(df_crosstab, annot=True, fmt="d",
            cmap="YlGnBu", cbar=True,
            center=df_crosstab.loc[9, 6])

heatmap example 3

Intermediate Data Visualization with Seaborn

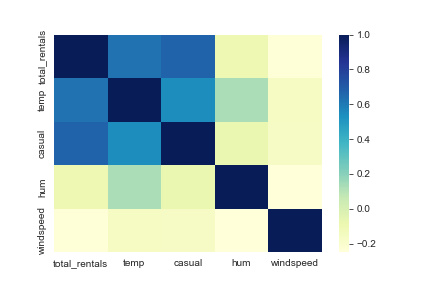

Plotting a correlation matrix

  • Pandas corr function calculates correlations between columns in a dataframe
  • The output can be converted to a heatmap with seaborn
cols = ['total_rentals', 'temp', 'casual', 'hum', 'windspeed']
sns.heatmap(df[cols].corr(), cmap='YlGnBu')

correlation matrix example

Intermediate Data Visualization with Seaborn

Let's practice!
