Social network metrics

Fraud Detection in R

Tim Verdonck

Professor Data Science at KU Leuven

Geodesic

Shortest path between nodes, e.g. between A and I

shortest_paths(network, from = "A", to = "I")

A C G I


Fraud Detection in R

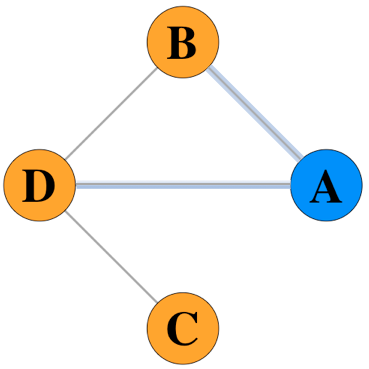

Degree = number of edges

degree(network)

A
2


Fraud Detection in R

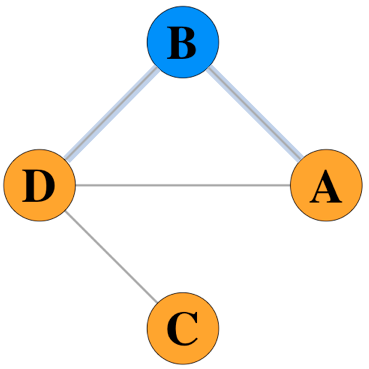

Degree = number of edges

degree(network)

A B
2 2


Fraud Detection in R

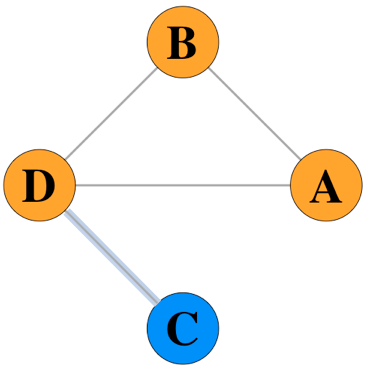

Degree = number of edges

degree(network)

A B C
2 2 1


Fraud Detection in R

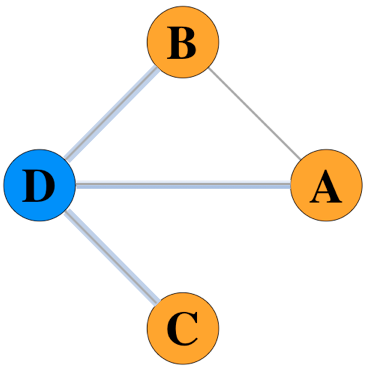

Degree = number of edges

degree(network)

A B C D
2 2 1 3

If Network has $N$ nodes, then normalizing degree means dividing by $N-1$. Here divide by 3:

degree(network, normalized = TRUE)

      A       B       C       D
0.66667 0.66667 0.33333 1.00000


Fraud Detection in R

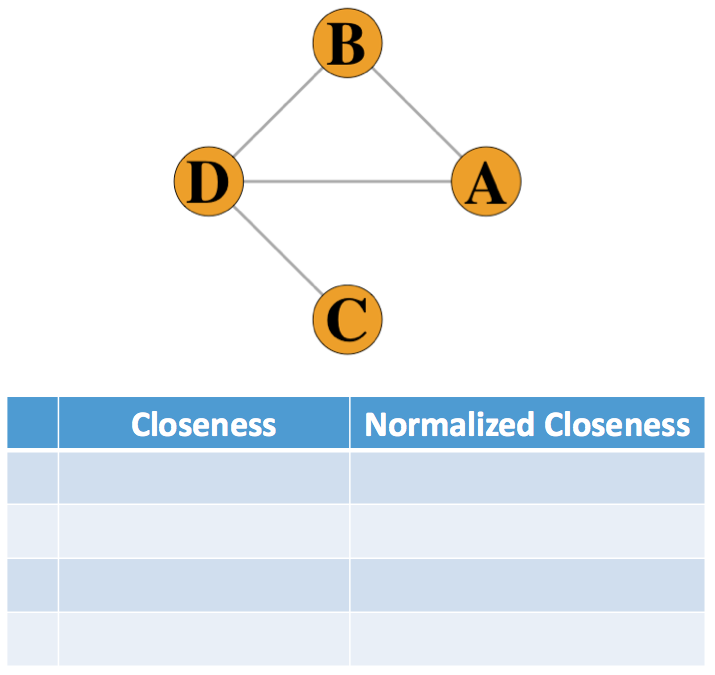

Closeness

Inverse distance of a node to all other nodes in the network


Fraud Detection in R

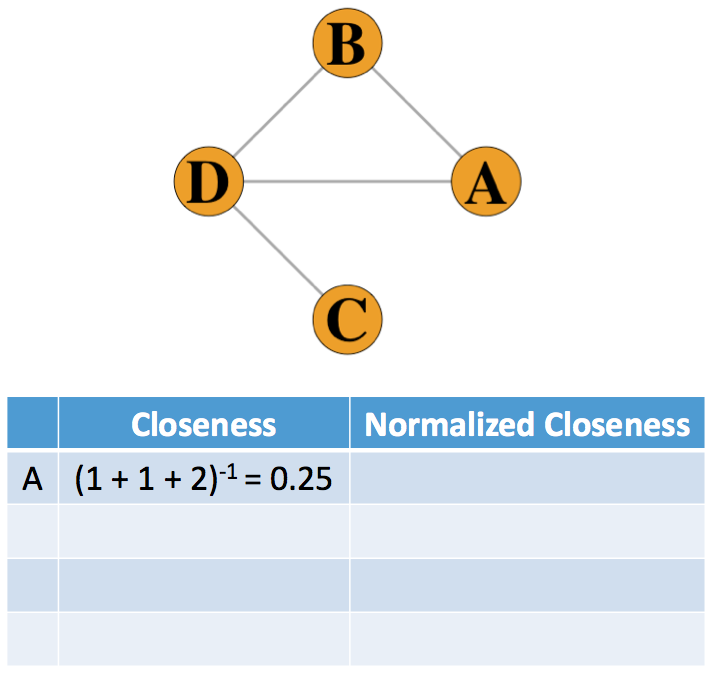

Closeness

Inverse distance of a node to all other nodes in the network

closeness(network)

   A
0.25


Fraud Detection in R

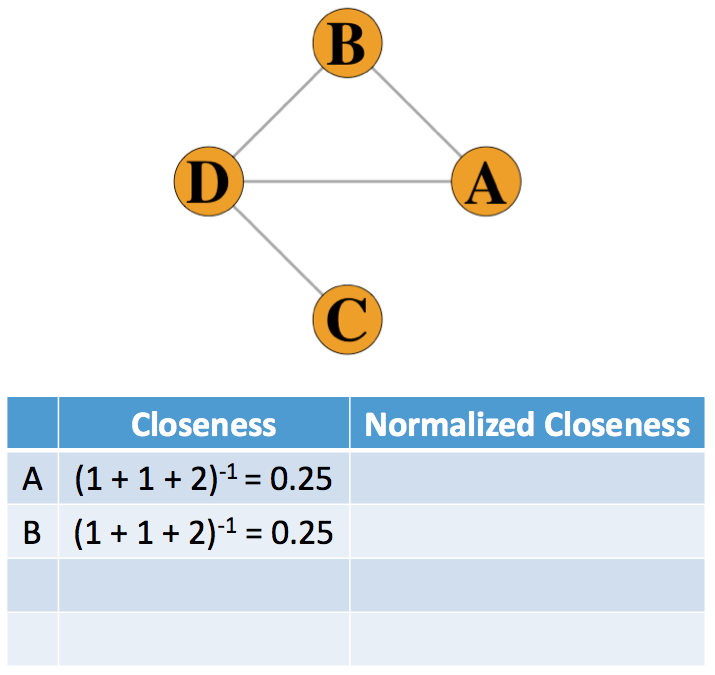

Closeness

Inverse distance of a node to all other nodes in the network

closeness(network)

   A    B
0.25 0.25


Fraud Detection in R

Closeness

Inverse distance of a node to all other nodes in the network

closeness(network)

   A    B    C
0.25 0.25 0.20


Fraud Detection in R

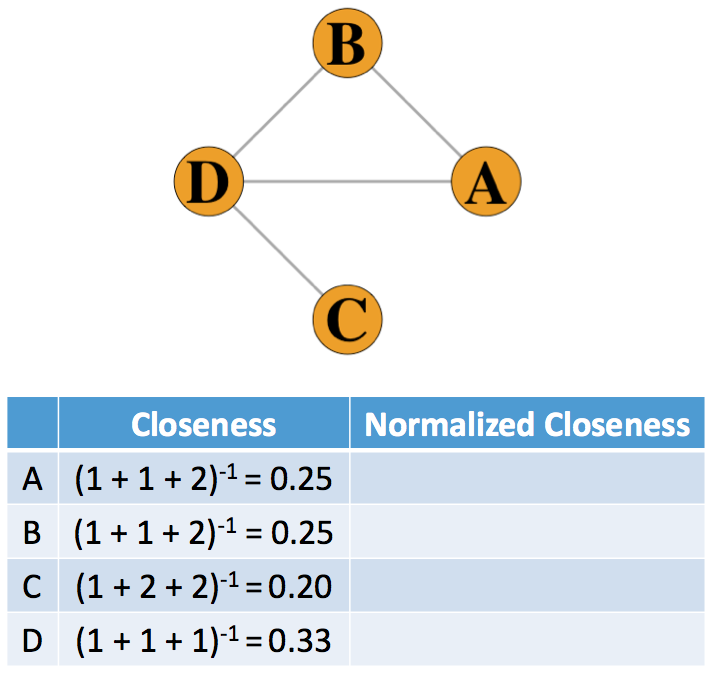

Closeness

Inverse distance of a node to all other nodes in the network

closeness(network)

   A    B    C    D
0.25 0.25 0.20 0.33


Fraud Detection in R

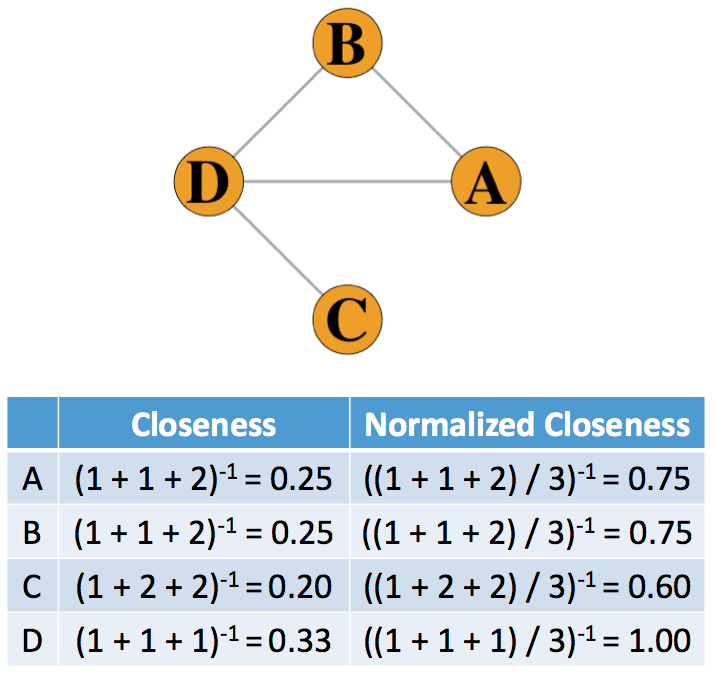

Closeness

Inverse distance of a node to all other nodes in the network

closeness(network)

   A    B    C    D
0.25 0.25 0.20 0.33

closeness(network, normalized = TRUE)

   A    B    C    D
0.75 0.75 0.60 1.00


Fraud Detection in R

Betweenness

Number of times that a node or edge occurs in the geodesics of the network betweenness_blank.png

Fraud Detection in R

Betweenness

Number of times that a node or edge occurs in the geodesics of the network betweenness_A_E.png

betweenness(network)

A       E
0       0
Fraud Detection in R

Betweenness

Number of times that a node or edge occurs in the geodesics of the network betweenness_B.png

betweenness(network)

A B     E
0 3     0
Fraud Detection in R

Betweenness

Number of times that a node or edge occurs in the geodesics of the network betweenness_C.png

betweenness(network)

A B C   E
0 3 4   0
Fraud Detection in R

Betweenness

Number of times that a node or edge occurs in the geodesics of the network betweenness_D.png

betweenness(network)

A B C D E
0 3 4 3 0
Fraud Detection in R

Featurization

features2

Fraud Detection in R

Let's practice!
